Product Description:

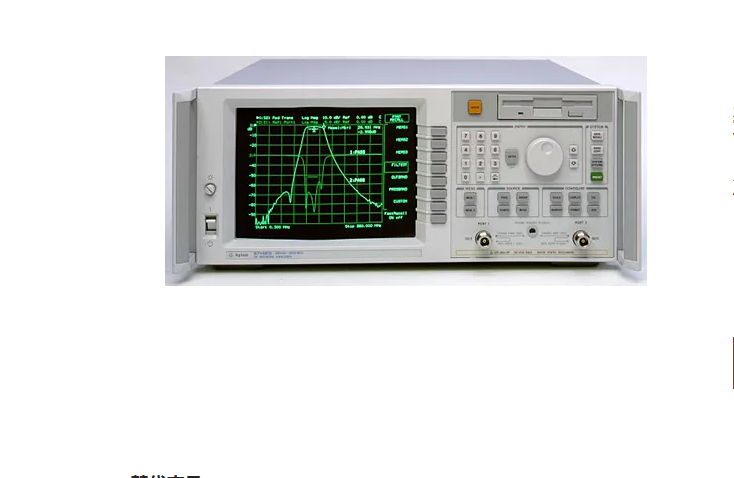

Keysight 8714ES is equipped with a complete two-port vector error correction function of the S-parameter tester, can be a complete and accurate measurement of equipment S parameters. Two independent channels can measure and display two parameters, such as S21 (transmission) and S11 (reflection), in a variety of formats, including delay and SWR, on rectangular, polar, or Smith circle chart displays. 8714ES Keysight has a frequency range of 300 kHz to 3 GHz.
The ES model comes standard with a 60 dB source attenuator that provides 70 dB power level control for testing active and passive devices. There are 50 ohm and 75 ohm versions available.
Product features:
Narrowband and wideband detection
100 dB dynamic range
Real-time scan speed (40 ms/ scan)
Integrated S-parameter test device
Synthetic source with a resolution of 1 Hz
Standard LAN interface
Standard Internal Keysight Instrument BASIC (IBASIC)
Standard 2, 6, and 12-port switching test units are available
