| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 5天 | 90天 | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |
产品描述：

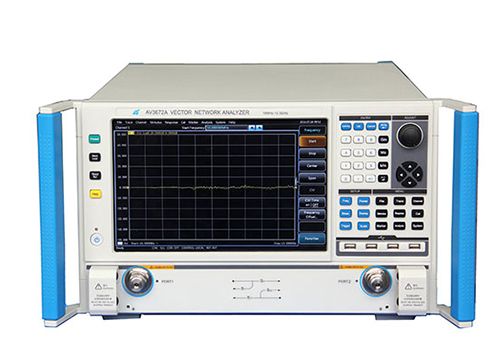

AV3672 系列矢量网络分析仪包括 AV3672A （10MHz ~ 13.5GHz）、AV3672B （10MHz ~ 26.5GHz）、AV3672C （10MHz ~ 40GHz）、AV3672D （10MHz ~ 50GHz） 和 AV3672E （10MHz ~ 67GHz）。在设备方面，与上一代相比，全新的设计理念和技术提案提高了扫描速度和动态范围等主要性能指标 （KPI）;在软件方面，采用高性能微处理器芯片的嵌入式计算机系统 （ECS） 和基于 Windows 操作系统的平台，显著提高了整机的互联性和可用性。AV3672系列矢量网络分析仪广泛应用于频率响应、单端口、响应隔离、增强响应和全双端口、电子校准等。它提供多种校准类型，包括;它提供了对数幅度、线性幅度、驻波、相位、群延迟、史密斯圆图和极坐标等多种图像格式;它设计有 USB、LAN、GPIB 和 VGA 等多种标准接口。AV3672系列矢量网络分析仪可以进行混频器的多功能和综合参数测试，以及与传统矢量网络分析仪相同的所有测量功能，配置功能选项/传感器、压缩二维扫描和脉冲S参数，以及精确测量微波网络的幅频特性、相频特性和群延迟特性。AV3672 系列矢量网络分析仪专为发射器/接收器 （T/R） 模块测量而设计。
特点：
校准类型灵活可选，兼容多种校准件
The AV3672 series of vector network analyzers includes AV3672A (10MHz ~ 13.5GHz), AV3672B (10MHz ~ 26.5GHz), AV3672C (10MHz ~ 40GHz), AV3672D (10MHz ~ 50GHz), and AV3672A (10mhz ~ 50ghz) AV3672E (10MHz ~ 67GHz). In terms of equipment, new design concepts and technical proposals have improved key performance indicators (KPIs) such as scan speed and dynamic range compared to the previous generation; In terms of software, the embedded computer system (ECS) with high-performance microprocessor chips and the platform based on the Windows operating system significantly improve the interconnection and availability of the whole machine. The AV3672 series of vector network analyzers are widely used in frequency response, single port, response isolation, enhanced response and full dual port, electronic calibration, etc. It offers a variety of calibration types, including; It provides many image formats such as logarithmic amplitude, linear amplitude, standing wave, phase, group delay, Smith circle graph and polar coordinates. It is designed with USB, LAN, GPIB and VGA and other standard interfaces. The AV3672 series of vector network analyzers can perform multi-function and comprehensive parameter testing of mixers, as well as all the same measurement functions as traditional vector network analyzers, configuring functional options/sensors, compressed 2D scanning and pulse S-parameters, and accurately measuring the amplitudefrequency, phase-frequency and group delay characteristics of microwave networks. The AV3672 series vector network analyzers are designed for transmitter/receiver (T/R) module measurement.
