Product Description:

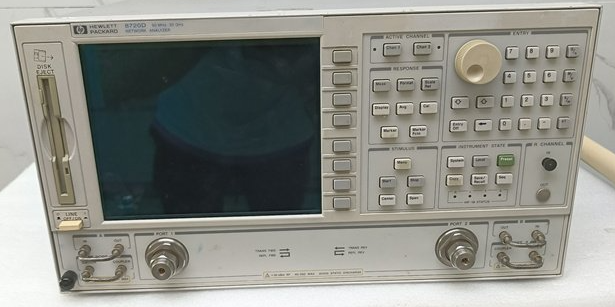

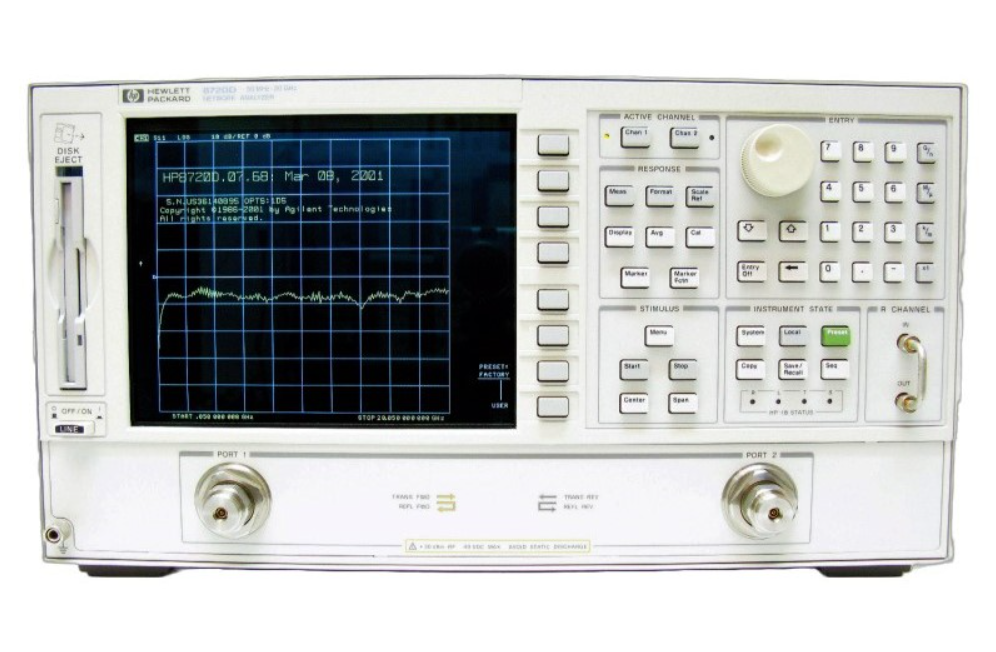

The HP Agilent 8720D network analyzer has a frequency range of 50 MHz to 20 GHz, a significantly faster processor compared to earlier versions, a built-in fast scan synthesis source, an integrated solid-state switching S-parameter tester, vector receiver, error correction and tuning receiver, and more. Provides up to 105 dB dynamic range. The HP 8720D allows rapid testing of microwave linear and nonlinear devices in both coaxial and non-coaxial environments, such as waveguides, in-fixture, and on wafers. The 8720D's relatively small footprint compared to earlier network analyzers makes it ideal for cost-conscious engineers with limited workbench space. It is ideal for R&D, manufacturing or quality assurance.
The "Fast" processor is seven times faster than earlier versions of the 8720 series. A fully synthesized source (in scan or step mode) provides stability and accuracy of 10 ppm (typical values). The frequency resolution is 1 Hz standard for accurate measurement of narrow band or long delay devices. Two independent channels can simultaneously measure and display all four S-parameters. Reflection and transmission measurements can be displayed in a variety of formats, including amplitude, phase, group delay, SWR, and Smith circle plots. # Built-in vector accuracy enhancements provide excellent error correction accuracy in common coaxial connectors, and the user kit supports user-defined standards and allows calibration in waveguides. Adapter removal calibration provides greater accuracy for measurement of non-pluggable devices, such as devices with the same gender connectors on two ports or different connector types on ports 1 and 2.
Features:
-
Frequency range from 50 MHz to 13.5, 20 or 40 GHz
-
The new processor improves measurement and data transfer rates by up to seven times
-
Fast scan, built-in synthetic signal source
-
Solid state switch S parameter comprehensive tester
-
Vector receiver, error correction, time domain
-
Dynamic range up to 105 dB
