Product Description:

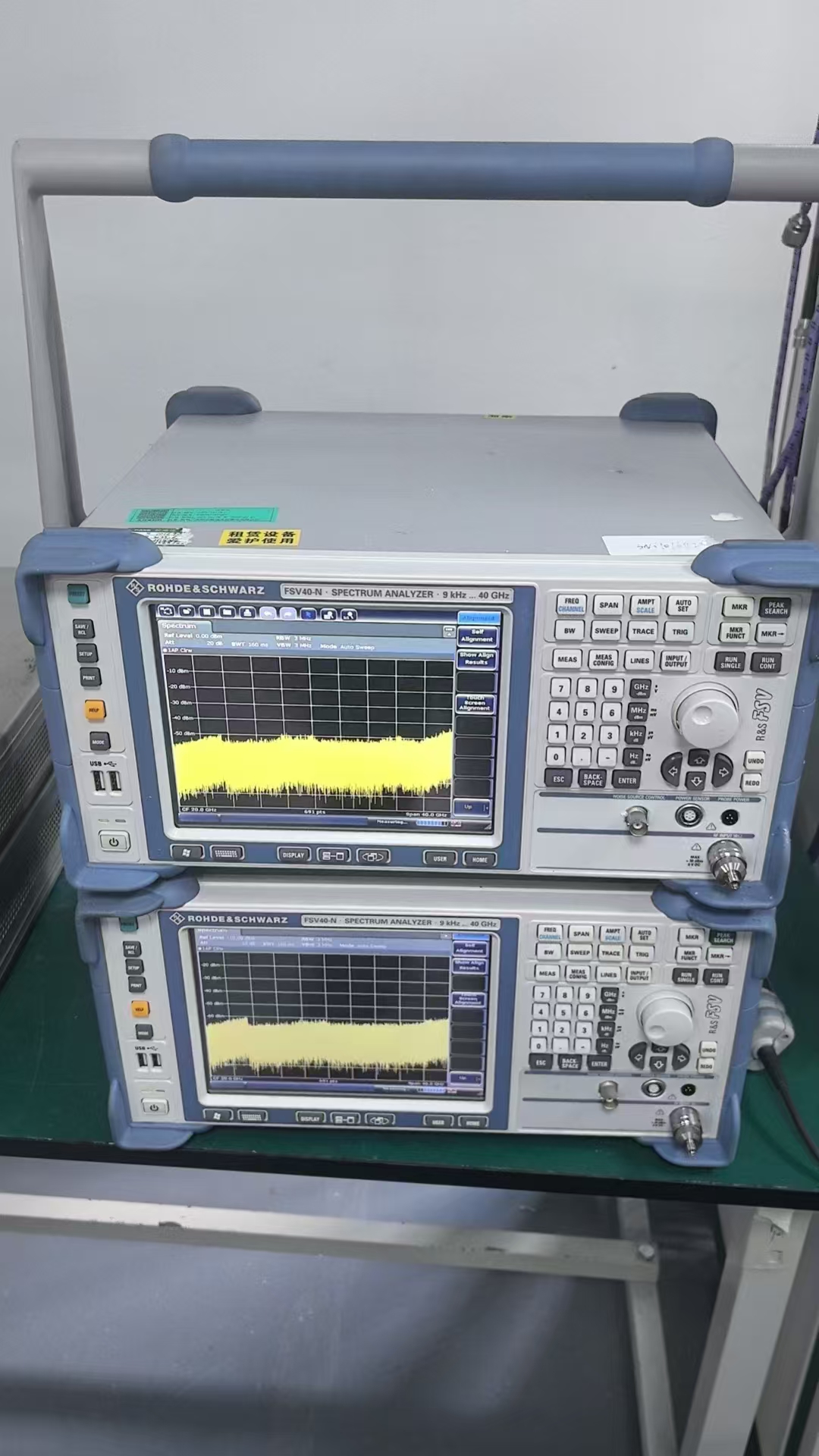

The Rohde & Schwarz FSV40 is an extremely fast and versatile signal and spectrum analyzer for performance-conscious, cost-conscious users involved in the development, production, installation and maintenance of RF systems.
In development applications, the Rohde & Schwarz FSV40 stands out for its excellent RF characteristics, an optional 160 MHz signal analysis bandwidth that is unmatched in its class, and a wide range of analysis packages for analog modulation methods as well as wireless and broadband. Communication standards.
The Rohde & Schwarz FSV40 is up to five times faster than comparable signal and spectrum analyzers and offers measurement routines optimized for speed and high data throughput. This is a key advantage in production applications.
The Rohde & Schwarz FSV40's touchscreen is easy to operate, compact, lightweight and directly supports the power sensor, making it the perfect choice for installation and service work.
Features:
Frequency range up to 40 GHz
Up to 160 MHz signal analysis bandwidth (optional)
0.4dB level measurement uncertainty
Measurement applications for GSM/EDGE (including EDGE Evolution), WCDMA/HSPA+, LTE, WiMAX™, WLAN, CDMA2000®, 1xEV-DO, vector signal analysis
Easy on-site upgrades with options
Phase noise at 10 kHz frequency offset is -110 dBc (1 Hz)
+16 dBm Third Order Intercept (TOI)
The average noise level (DANL) displayed in the 1 Hz bandwidth: At 1 GHz - 155 dBm, at 3 GHz -153 dBm, at 7 GHz -149 dBm, at 13 GHz -151 dBm, at 30 GHZ -147 dBm, at 3 GHz -139 dBm using Rohde & Schwarz FSV-B24 Preamplifier at 40 GHz: -167 dBm at 10 GHz, -162 dBm at 30 GHz, and -156 dBm at 40 GHz
Removable hard drive for applications where security needs to be considered
