Product Description:

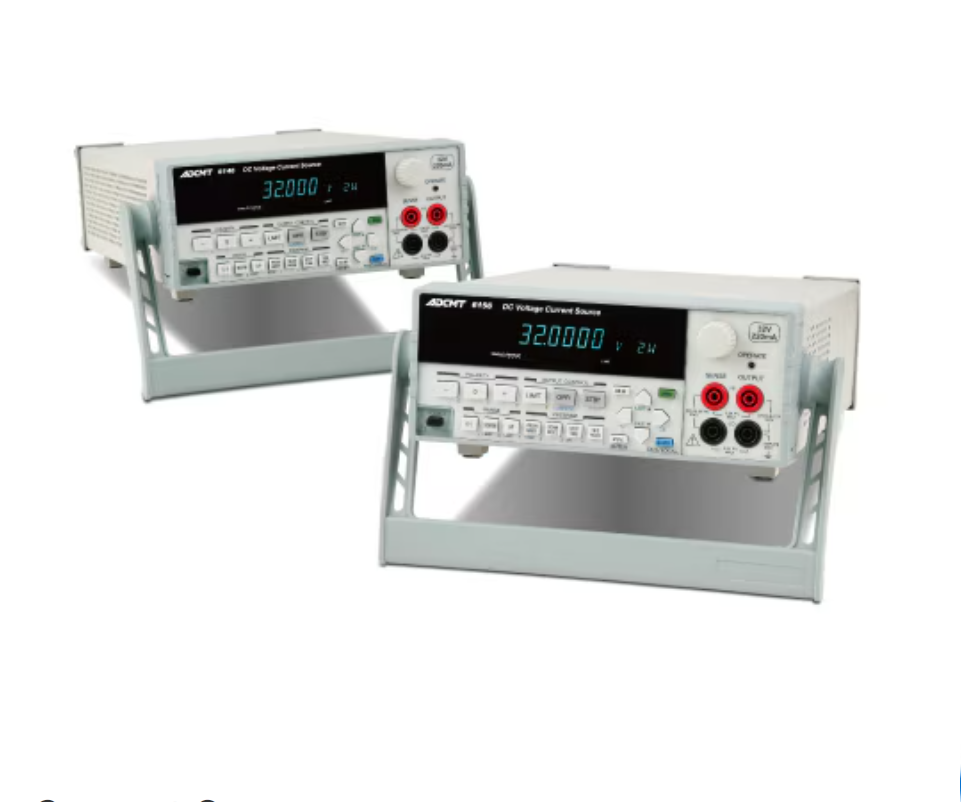

The 6156 is a precision DC voltage/current source for the performance evaluation of semiconductor or electronic components and modules in research and development and for the calibration of instruments or measuring instruments.
Based on ADC's comprehensive DC voltage/current source technology, it achieves a wide dynamic range, high resolution, high precision, and low output noise, resulting in a highly reliable and high-throughput system architecture.
With a variety of user-friendly features, the 6156 can not only operate independently, but also be integrated into automatic measurement systems as a secondary battery simulator.
In addition, the 6156 is equipped with a JIS-compliant thermoelectric motive force output for easy temperature calibration.
Product features:
Wide dynamic range of power supply
6156 Voltage: 0 to ±32.0000 V Current: 0 to ±220.000 mA
High resolution 100 nV/10 nA
High precision (one year warranty)
Voltage basic accuracy: ± 0.015%
Current basic accuracy: ± 0.02%
Multiple devices run synchronously
Thermoelectric motive force output in accordance with JIS standards
