Product Description:

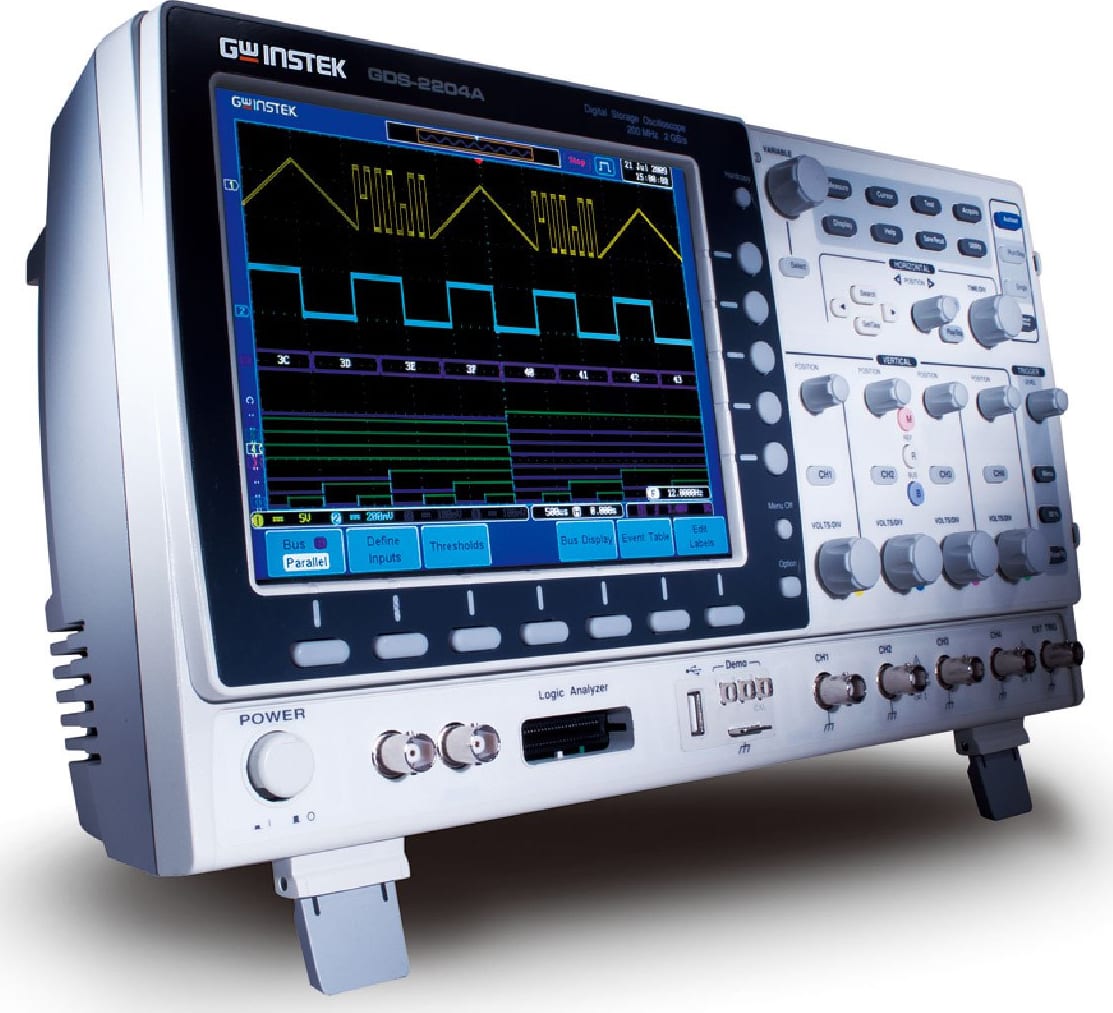

The GDS-2000A series offers 2 megabit record length, waveform search, and segmented storage as standard features. Events of interest can be captured and saved into segmented memory, which can be divided into 2048 sections for observation, while irrelevant waveforms can be ignored. As a result, the overall efficiency of memory usage can be improved. In waveform search mode, after triggering the input signal, the GDS-2000A series is capable of searching and labeling waveform segments that meet user-defined search criteria and threshold levels throughout memory. At the same time, using the Zoom window and the Play/Pause button to scroll through the entire displayed waveform, the user can quickly navigate all waveforms in an efficient manner.
Product features:
70MHZ bandwidth range,2 input channels
2GSA/S real-time sampling rate and 2 megabit storage depth for half-channel applications
1GSA/S real-time sampling rate and 1 megabit storage depth across all channels
100GSA/s equivalent time sampling rate
1MV/ Design Section to 10V/ Vertical Range Design section
First country/design data verified to 100 countries/time base range
80,000wfm/s waveform update rate
8 inch 800*600 high resolution tvt LCD display
