Product introduction:

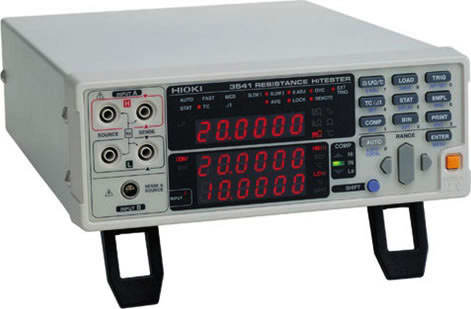

The 3541 is a 6-1/2, 1,200,000 point display with a minimum resolution measuring resistance of 0.01μ2. Be proficient in the field of high resolution resistance measurement such as coil inspection of inverter motor.
In electronic parts, it is mainly used for conductive film/conductive rubber and other high resistance materials. RM3545 can be measured up to 1200M2. What's more, because of the highest accuracy of 0.006%, even the highest current detection resistance can be used.
Features:
-
The basic accuracy is 0.006%, the minimum resolution is 0.01uΩ, the maximum measurement current is 1A
-
The measurement range is 0.00μ2 (measuring current 1A) to 1200M2
-
Multipoint measurement with multiway scanner Unit Z3003(Optional) (4 terminals 20 channels)
-
And multi-channel scanning function for comprehensive judgment (RM3555-02 only)
-
Open port voltage up to 20mV for low resistance measurement
-
Support high-speed automatic discrimination, from the beginning of measurement to judgment output as fast as 2.2s
