Product Description:

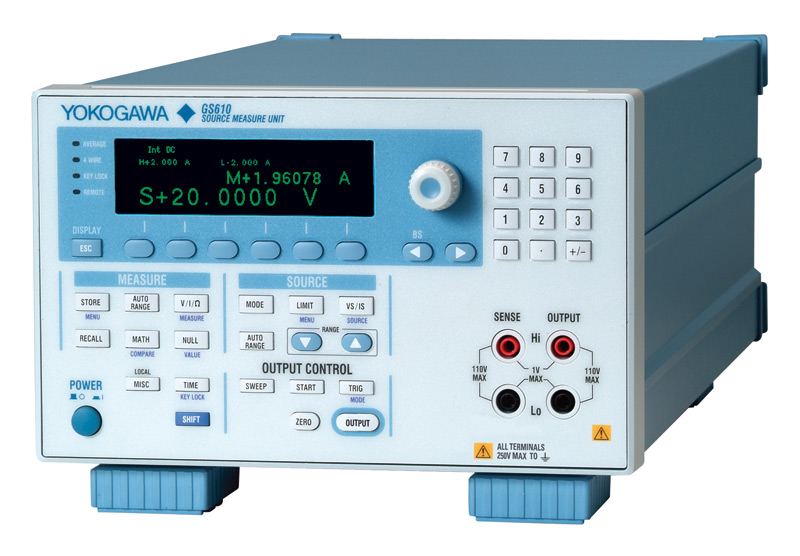

The GS610 is a highly accurate and powerful programmable voltage/current source that integrates voltage/current generation and measurement. Maximum output voltage 110v, maximum output current 3.2A. Since the GS610 can operate as a current source or sink, a wide range of basic electrical characteristics can be evaluated.
Product features:
Source and sink operation up to 110v / 3.2A (four-quadrant operation)
Basic accuracy: ±0.02% (DC voltage generation)
Scan output at intervals of up to 100µ
Rich scanning modes (linear, logarithmic and arbitrary)
Store up to 65535 points of source measurement data in internal memory
Remote control and FTP using Web server functionality (optional)
Convenient file operation with USB storage
Voltage/current generation and measurement range
Four-dimensional operation with source operation (current source) and sink operation (current sink) is possible up to 110v, 3.2A, and 60w.
Output and measurement resolution is 5.5 bits.
Voltage generation/measurement range: 200mv ~ 110v
Current generation/measurement range: 20µA to 3.2 A
Maximum output current:
± 3.2A& (Output voltage ≤±12v)
±2a (output voltage ≤±30v)
±1a (output voltage ≤±60v)
± 0.5A (output voltage ≤±110v)
Generation and measurement functions
The GS610 consists of a constant current source, a constant voltage source, a voltmeter and an ammeter. Each function can be combined into multiple modes of operation.
