Product Description:

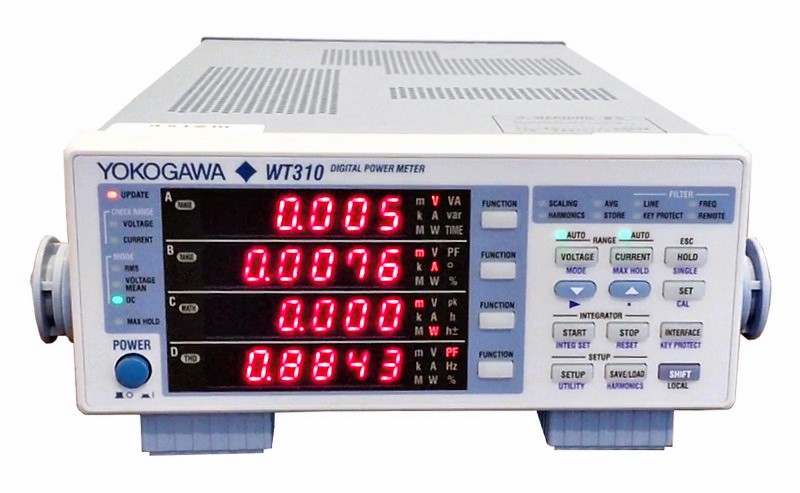

The Yokogawa WT310 digital power meter offers a wide current input range, fast display and fast data update speed in a compact and powerful instrument. High performance and reliable power measurement make it the power meter of choice for a wide range of industries, from production lines to R&D applications.
Features and specifications of the Yokogawa WT310 digital power meter include:
Features:
High performance and reliability:
Basic accuracy is 0.1% of reading
Low current measurement
Wide current input range
Standard USB, GP-IB or RS-232(optional) and Ethernet (optional)
Measure all parameters simultaneously:
Measure all AC and DC parameters
Harmonics are measured and integrated at the same time without changing the measurement method
Monitor and save parameters with Wtkswr free add-on software
Fast display and data update rate:
Provide short skill times during testing
Basic measurement accuracy consistent across all input ranges
Easy measurement function:
Maximum Hold function: Allows maximum rms/ peak voltage and current active power, reactive power and apparent power to be held
Line filter and frequency filter function: cut off unnecessary noise and harmonic components for basic waveform measurement
Specifications:
Input elements :1
Type of input terminal:
Voltage: Plug-in terminal (safety terminal)
Current: Direct input: Large bound posts
Input format:
Voltage: Floating input via resistance divider
Current: Floating input via shunt
