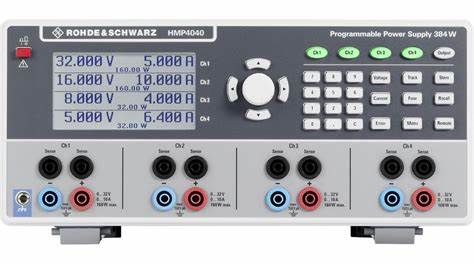

销售罗德与施瓦茨 HMP4040 四通道电源

浏览次数:196

晧辰自营,品质保证,配送快捷

产品参数

选件 是否计量 发货周期 保修时间 成色
3天 90天 8成新
所在地 机身号 状态 资料下载
深圳市 完好
更新日期:2024-10-23
联系电话:0755-86016691

* 产品描述

产品描述:

R&S HMP 电源主要设计用于工业用途。这些坚固耐用的仪器具有两个、三个或四个输出通道,每个通道输出电流高达 10 A,非常适合各种应用。它们具有高效率、低残余纹波和多种保护功能。

R&S HMP 电源系列包含四种型号。 R&S HMP2020 两通道电源和 R&S HMP2030 三通道电源提供高达 188 W 的总输出功率,三通道 R&S HMP4030 和四通道 R&S HMP4040 提供的最大输出功率为 384 W。负载可以根据需要分布在不同的通道上。根据型号的不同,在任何电压/电流分布中均可提供高达 80 W 或 160 W 的通道功率。

产品特点:

  • 4 通道和 384 W 总输出功率
  • 每通道最大输出电压32V;串行操作可提供更高的电压
  • 高输出电流高达 5 A/10 A(取决于型号);并联运行时可能产生更高的电流
  • 线性后调节可实现低残余纹波
  • 电子保险丝(OCP)、可调最大电压(OVP)、过温保护(OTP)
  • 适用于所有通道的后面板连接,包括传感线

详细信息

Product Description:

The R&S HMP power supply is primarily designed for industrial use. These rugged instruments feature two, three or four output channels with up to 10 A output current each, making them ideal for a variety of applications. They offer high efficiency, low residual ripple and multiple protection features.

The R&S HMP power supply family consists of four models. The R&S HMP2020 two-channel power supply and R&S HMP2030 three-channel power supply provide a total output of up to 188 W, and the three-channel R&S HMP4030 and four-channel R&S HMP4040 provide a maximum output of 384 W. The load can be distributed across different channels as needed. Depending on the model, channel power up to 80 W or 160 W is available in any voltage/current distribution.

Product features:

4 channels and 384 W total output power
The maximum output voltage per channel is 32V; Serial operation provides higher voltage
High output current up to 5 A/10 A (depending on model); Higher currents may be generated when running in parallel
Low residual ripple is achieved with linear post-adjustment
Electronic Fuse (OCP), Adjustable Maximum Voltage (OVP), Overtemperature protection (OTP)
Rear panel connections for all channels, including sensing lines
