Product Description:

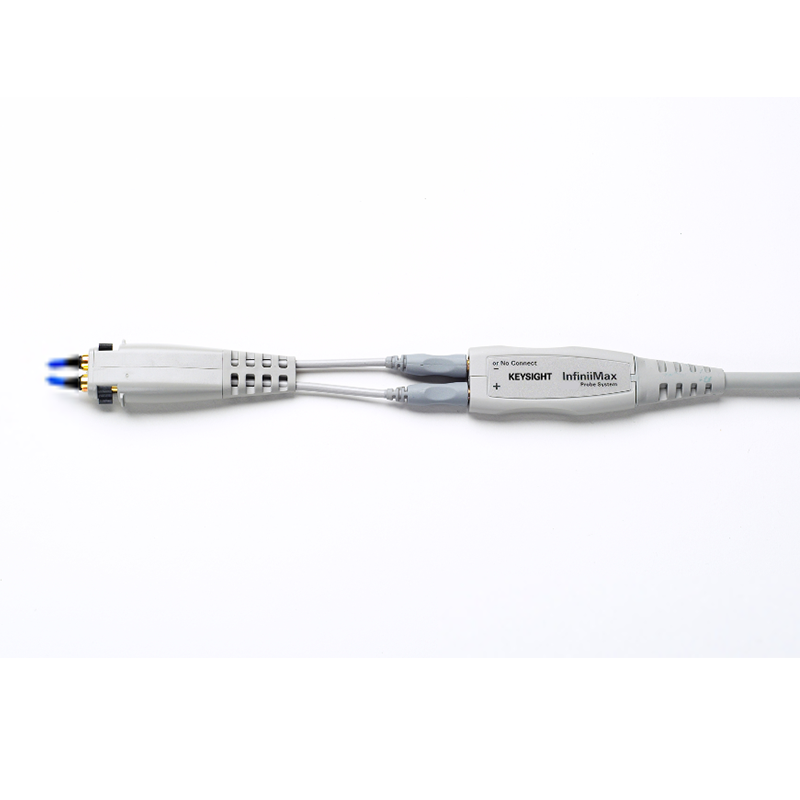

Keysight 1130B series InfiniiMax probe amplifier
For high-speed differential or single-ended detection in embedded designs, the Keysight InfiniiMax 1130B differential probe amplifier is the perfect complement to the Keysight Infiniium and Keysight InfiniiVision compatible oscilloscopes (see table below). Extremely low input capacitance, flat frequency response and patented resistance probe cutting edge technology provide ultra-low DUT loads and superior signal fidelity. Keysight's innovative InfiniiMax 1130B series differential probes are the easiest to use and highest performing probe systems for high-speed digital designs, representing a new industry standard for accuracy, flexibility and reliability. Even when using the probe for manual browsing or automated measurements, designers can use it in combination with the InfiniiVision series oscilloscope for complete system bandwidth.
Product features:
Bandwidth: 5GHz
Dc attenuation ratio: 10:1/5:1
Input impedance: 50 kΩ // 0.27 pF (differential); 25 kΩ // 0.44pF (Single-ended)
Maximum input voltage: 30 V peak (power isolation)
InfiniiMax probe amplifiers provide ultra-low DUT loads and superior signal fidelity
Low capacitance, flat frequency response and patented resistance probe technology
Automatic probe interface for automatic configuration and probe power supply
The 1132B is a RoHS compliant version of the 1132A with 100% identical form factor, fit, features, and price
The probe has an extensive list of probes and accessories to support a variety of applications
