Product Overview:

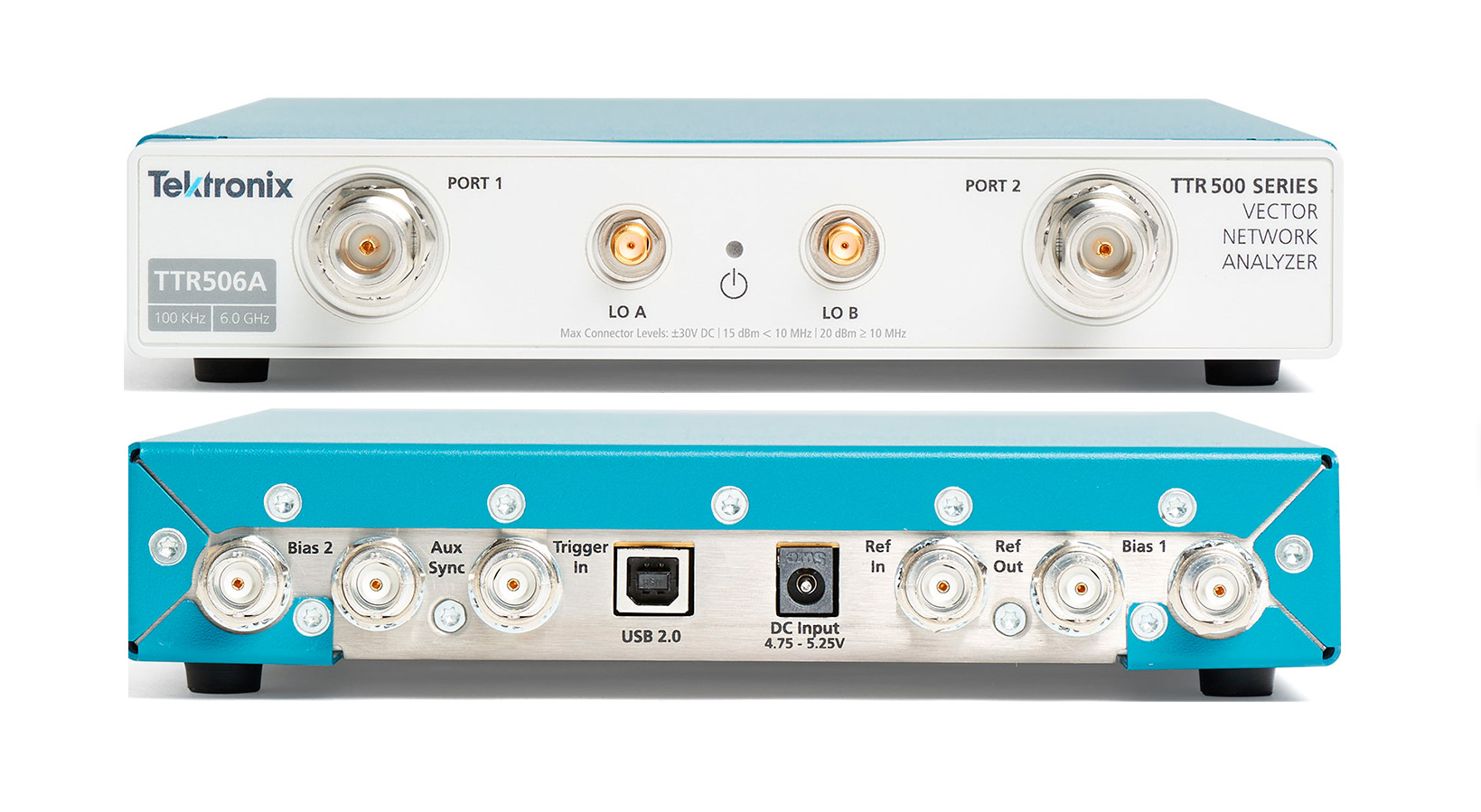

The TekTR500 Vector Network Analyzer (VNA) is a 2-port and 2-channel analyzer with an unmatched combination of measurement performance and convenience. The TTR500 series provides performance in excess of 122dB dynamic range and less than 0.008dB running noise. These TekTR-TTR500 analyzers operate in the frequency range from 100kHz to 6GHz. Features include S-parameter measurement, a built-in offset T-joint accessible to both ports, and an offline simulation mode for analysis. Typical applications include antenna matching and tuning, RF component design and verification, and education.
Features:
Full 2-port 2-channel S-parameter measurement (S11, S21, S12, S22) in a variety of formats
Complete vector network analysis with Tektronix VectorVuPC™ software
Both ports can use built-in offset T-joints to offset active devices
Application Programming Interface (API) for Microsoft Windows environment and LabView drivers
The powerful SCPI command interface (compatible with current VNA models) optimizes code migration
Touchstone file support (import/export) for electronic design
Automation (EDA) simulation tools
Offline simulation mode for analyzing S-parameter files when disconnected from the instrument
Specifications:
Frequency range:
TTR503A-100kHz to 3.0GHz
TTR506A-100kHz to 6.0GHz
Port: 2-port, N-type female connector
Applications:
Antenna matching and tuning
Rf component design and validation
education
