Product Overview:

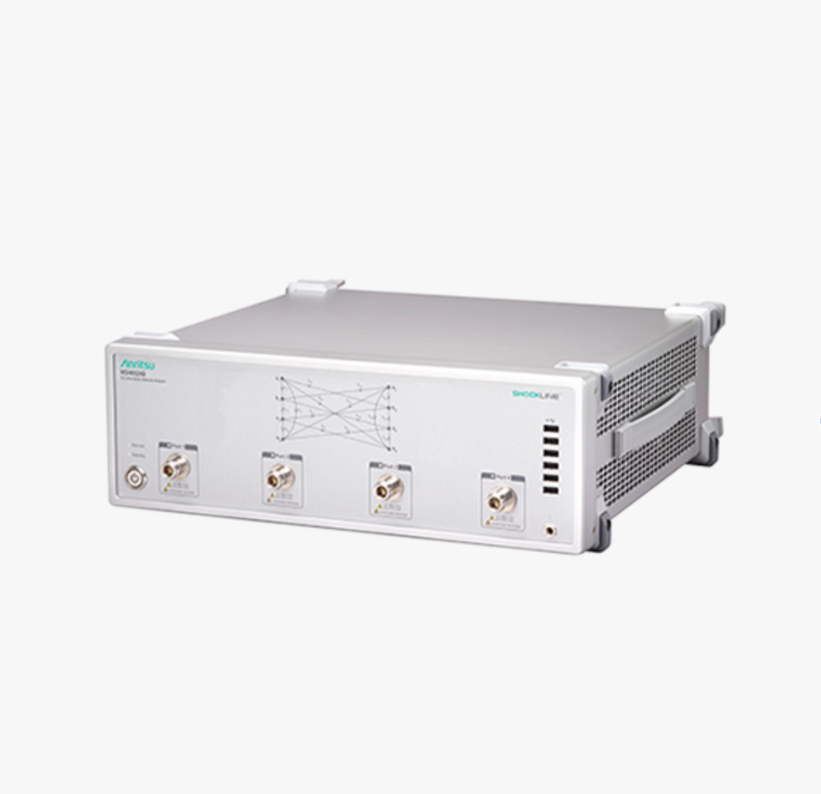

The ShockLine™ MS46522B series is a 2-port performance vector network analyzer. The family delivers unprecedented levels of value and performance, reduces test costs and accelerates time to market for numerous test applications up to 92 GHz, including: manufacturing and validating mobile network equipment and devices for 5G millimeter wave applications; Automobile cable; High-speed data interconnection; And system integration components.
The ShockLine MS46522B series is configured with options 10, 20 or 43, bringing RF to microwave frequency capabilities to the series. These frequency options, combined with the powerful shockline software, provide a cost-effective solution for the most challenging passive device testing.
Options 82 and 83 are E-band frequency options for the ShockLine MS46522B VNA. These options take performance, cost and convenience to a new level using a tethered source/measurement module that is unprecedented in the market. Option 82 comes with a 1-meter tether for desktop applications and Option 83 comes with a 5-meter tether for over-the-air (OTA) darkroom installation. For applications that require only E-band frequency coverage, the ShockLine MS46522B 55-92 GHz mmwave option is the most valuable product on the market for mass-market production of E-band components.
For applications requiring time domain analysis, options 2 and 22 are available on the MS46522B VNA. Option 2 supports real-time bandpass and low-pass time domain functions. The low-pass time domain enables a TDR-like display, showing the true impedance over distance or time. Option 22 equips the ShockLine MS46522B with a file-based signal integrity (SI) tool for debugging SI problems and verifying circuit models.
The 8.5 GHz ShockLine MS46522B VNA model has an additional bias tee option, Option 61, which allows the user to provide DC power to the bias device during testing.
The series includes a computer and power supply located in a compact 3U tall case and uses the same GUI, software, command syntax, drivers, and programming environment as the rest of the ShockLine series.
Features:
Guaranteed performance up to 43.5 GHz with extended K™ port
High output power allows measurement of high attenuation devices
Advanced time domain options provide tools for signal integrity analysis
Wide dynamic range to measure very low reflection artifacts
Excellent correction directivity minimizes measurement uncertainty
The SmartCal™ Automatic Calibration unit reduces calibration and setup time
Time domain with time-strobe option enables easier and faster fault identification
Modern LAN interfaces for remote control are faster than GPIB
Common GUI and SCPI interfaces in the ShockLine family
The offset T option simplifies DUT test setup where DC bias is required
The Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction
E-band VNA
The extended frequency range covers major parts of the E-band and V-band
The fully assembled test system eliminates setup errors and improves reliability
The mooring module is connected directly to the DUT for improved measurement stability
