Product Description:

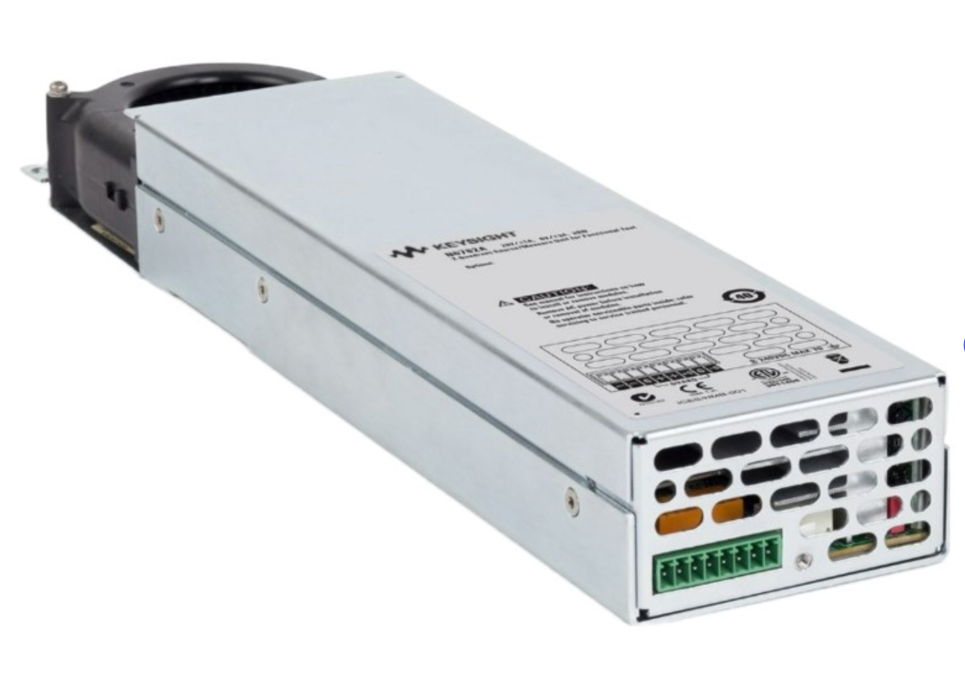

The Keysight N6782A is a signal source/measurement unit (SMU) designed for advanced functional testing of equipment. The Keysight N6782A (Agilent) is capable of modulating output at frequencies up to 100 kHz and is capable of delivering and absorbing current (2-quadrant operation), making it ideal for advanced functional testing, power management units, power amplifiers, and power management ics for a variety of devices such as DC/DC converters. The input stage of the DUT can be stimulated by fast source and waveform functions. The output stage can be loaded and measured through the electronic load function, providing a complete test solution.
Keysight N6782A (Agilent) signal source/measuring unit features include:
Trouble-free procurement and measurement - Change the output and measurement range without any failure
2 Quadrant operation - used as a voltage or current source or CV or CC electronic load
Four current measurement ranges - accurately capture the current levels of the DUT in different operating modes
Excellent transient response - keeps voltage or current stable during high-speed load changes
Fast DC modulation - Creates waveforms up to 100 kHz to excite the DUT or reduce the load on the DUT
High-speed digital measurement - Capture/view DUT power consumption every 5 µs with a built-in 200 kHz digitizer
Keysight N6781A power supply/measuring unit specifications include:
Output rating:
Voltage: up to 20V
Current: up to ±3A
Power: 20W
Programming accuracy (23°C ± 5°C, 30 minutes after preheating. For smallest to largest programs) :
Voltage, 20V range: 0.025%+1.8mV
Voltage, 6V range: 0.025% + 600 µV
Current, 3A and 1A range: 0.04% + 300 µA
Current, 300mA range: 0.03% + 150µA
Output programming speed:
The output voltage can be changed to resistic load within 10 µs or at 100 kHz
Current measurement accuracy (23°C ± 5°C) :
Voltage, 20V range: 0.025% + 1 mV*
Current, 3A range: 0.03% + 200 µA*
Current, 100 mA range: 0.025% + 7 µA*
Current, 10 µA range: 0.025% + 8 nA
