| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 3天 | 90天 | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |

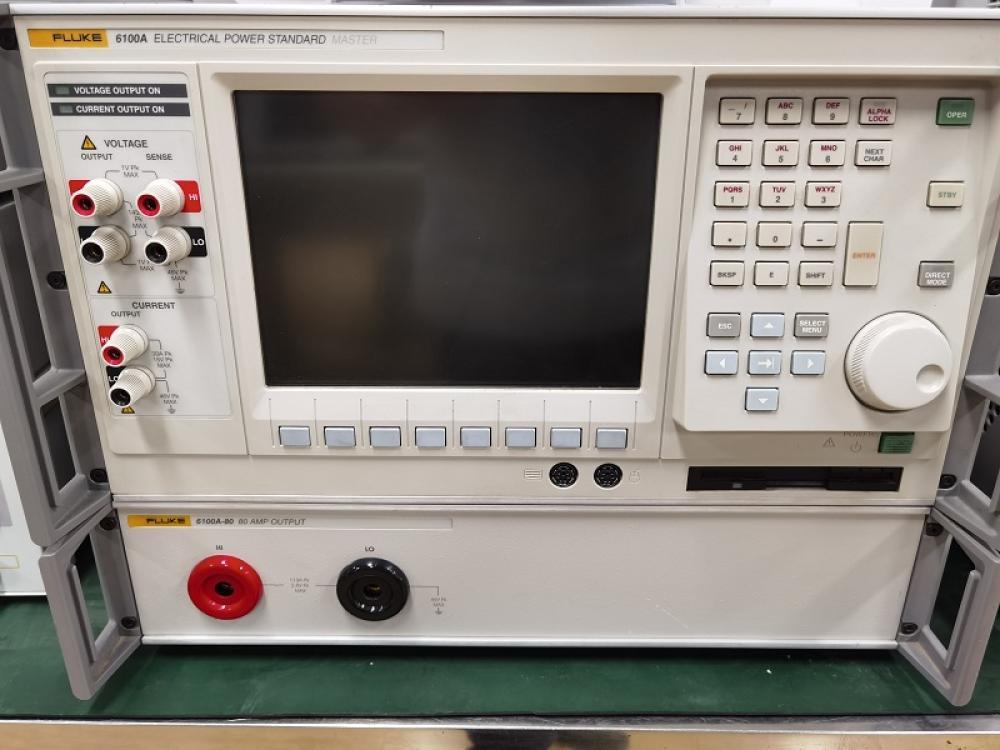

Fluke 6100A 为电源标准的准确性设立了新的基准。电压和电流的生成分辨率高达 6 位，精度接近 100 ppm (0.01 %)。相位调整提供 1 毫度或 10 微弧度分辨率。相位性能非常出色，精度可达 3 毫度，短期稳定性可达 200 微度。在多相系统中，相间的相位精度为 5 毫度，短期稳定性同样达到 200 微度。这种出色的相位性能水平等于或超过了许多商用相位标准。相位精度对于实现功率精度至关重要。Fluke 6100A 的 3 毫度相位精度确保可以实现接近 200 ppm (0.02 %) 的功率精度。
6100A 将提供 1000 V 的纯正弦电压和 21 安培的电流（可选为 80 A）。电压端子可提供高达 50 VA 的电源，以支持从测量线路上获取电源的仪器。
出色的分辨率和准确度
多阶段操作
能量校准和验证
The Fluke 6100A sets a new benchmark for accuracy in power standards. Voltage and current are generated with up to 6 digits resolution and accuracys approaching 100 ppm (0.01 %). Phase adjustment provides for 1 milli-degree or 10 micro-Radian resolution. Phase performance is exceptional, with accuracy to 3 milli-degrees and short term stability to 200 micro-degrees. In multi-phase systems phase accuracy between phases is 5 millidegrees, again with short term stability to 200 micro-degrees. This outstanding level of phase performance equals or exceeds a number of commercially available phase standards. Phase accuracy is imperative in achieving power accuracy. The 3 milli-degrees phase accuracy of the Fluke 6100A ensures power accuracy approaching 200 ppm (0.02 %) can be achieved. Simple trigonometry applied to the equation Power = VIcosø demonstrates that compromising phase performance can only severely degrade power uncertainty
The 6100A will supply pure sinusoidal voltage to 1000 V and current to 21 Amps (optionally to 80 A). Up to 50 VA’s of power is available from the voltage terminals to support instruments which draw power from the line on which they are measuring.
Outstanding Resolution and Accuracy
Multi-Phase Operation
Energy Calibration and Verification
