Product Description:

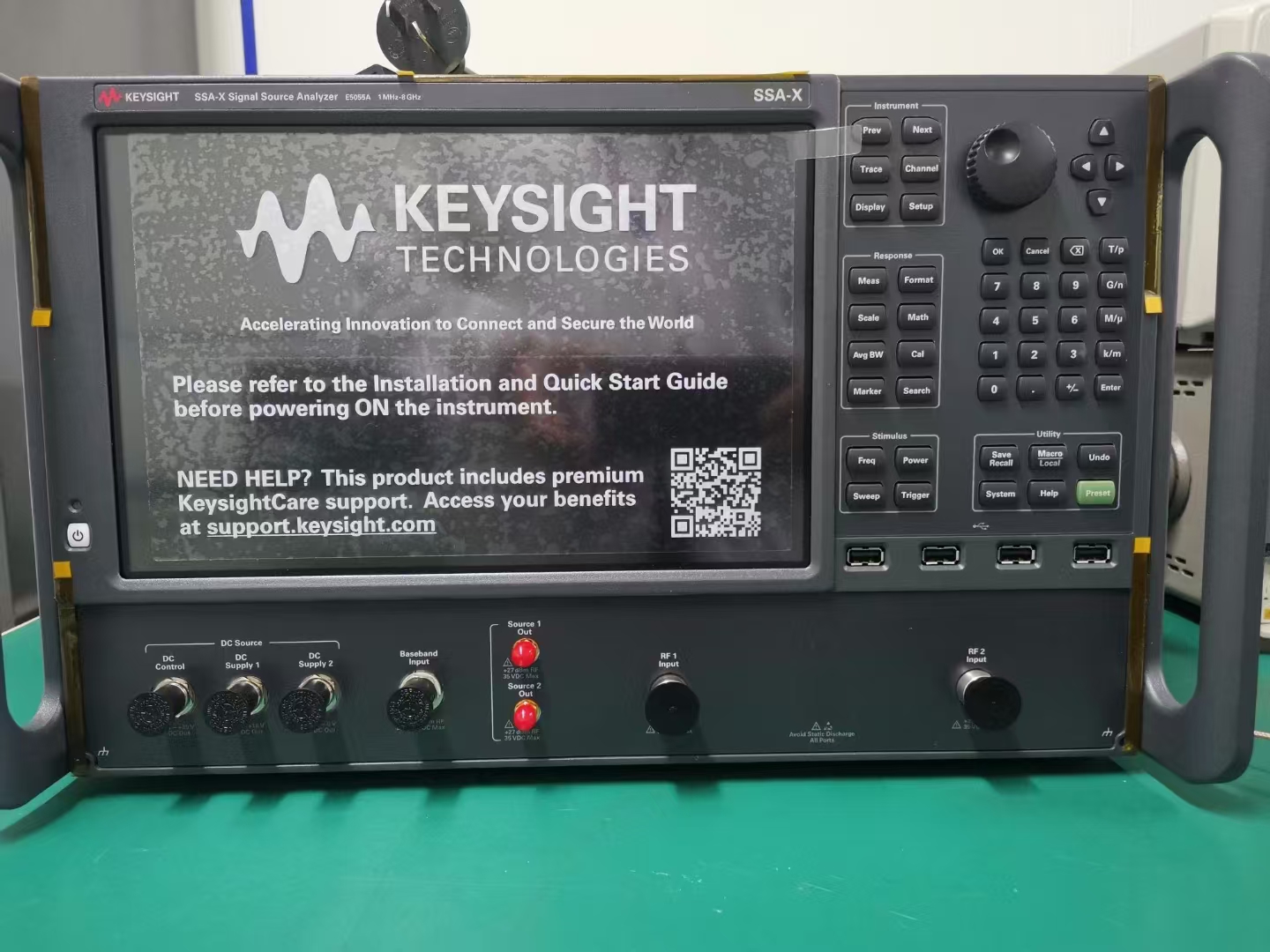

The E5055A SSA-X Signal source analyzer is the next generation benchtop signal source solution for wireless communications, high-speed digital, and aerospace and defense applications. The E5055A offers exceptional performance with an RF frequency range of 1 MHz to 8 GHz, a phase noise offset frequency of 0.01 Hz to >1 GHz, and an advanced system noise sensitivity of -175 dBc/Hz (typical value). Optimize measurement throughput and accuracy with flexible measurement Settings.
Flexible measurement Settings and a modern user interface increase measurement efficiency, while application support through software expands the measurement range to meet new requirements. The accuracy and precision of phase noise measurement are improved by using ultra-low background noise and cross-correlation method.
Features:
Frequency range 1 MHz to 8 GHz
Minimum offset frequency 1 millihertz
Input power range 50 dBm to +20 dBm (typical)
Allan deviation tau (τ) = 1 second is 4.0 x 10E-13
