Product Description:

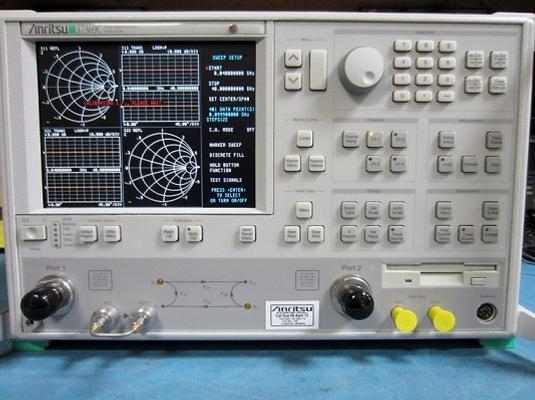

The Anritsu 37369C Network Analyzer is part of the Anritsu Lightning series Vector Network Analyzer (VNA). Designed for fast and accurate S-parameter measurement of active and passive devices in the 40 MHz to 40 GHZ range. The Anritsu 37369C Network analyzer integrates a synthetic source, an S-parameter tester, and a tuned receiver into a compact package, making it ideal for benchtop testing. The Anritsu 37369C is also configured as a direct access receiver for antenna, frequency conversion and multi-output device measurement. The network analyzer consists of a synthetic source and tuned receiver in a compact unit with direct access to all four receiver samplers through the front panel. The 37100C is extremely flexible to meet the measurement needs of most receivers, while maintaining the ability to measure all four S-parameters by adding a reflectometer setup to the front of the receiver.
Achieve high throughput measurements using fast 12-item error-correcting scans, fast GPIB data transfer, and an intuitive user interface. All measurements are displayed on a large LCD color display or an external VGA display.
Features:
Quickly scan synthetic sources
Automatic reverse test set
Solid-state change-over switch
Four independent display channels
Multiple source control for two external sources
