Product Overview:

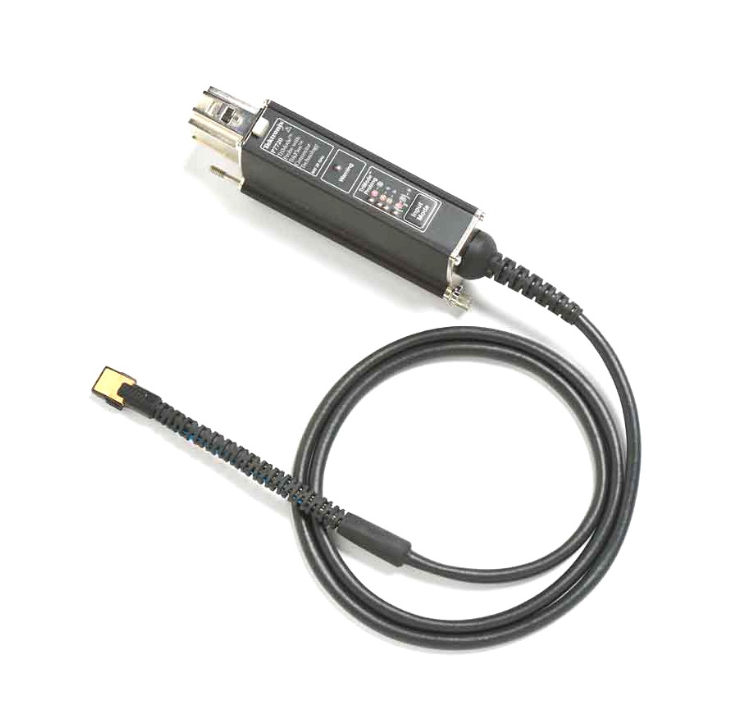

The Tektronix TDP7700 Series TriMode probes provide the highest probe fidelity for real-time oscilloscopes. In addition, the TDP7700 series probes feature connection innovations such as welded tips, with the probe's input buffer mounted just a few millimeters from the end of the tip, providing unmatched availability for connecting today's most challenging electronic designs.
With TriMode detection, a single probe setup enables accurate differential, single-ended, and common-mode measurements. This unique feature allows you to work more efficiently, switching between differential, single-ended and common-mode measurements without moving the probe's connection points.
Features:
High bandwidth to ensure signal fidelity: 6 GHz TDP7706
Minimal impact on the device
Thin and flexible welding head
Light and flexible probe cable
Active buffer tip design for low probe load
TekFlex connector technology for easy connection
Kneading opens accessory connector
Multifunctional connectivity - welding tips, optional browser for handheld or stationary probes, and coaxial inputs (SMA adapter)
Cross-compatible with P7700 series nozzle accessories
Full bandwidth
Probe cables and welding tips operate over an extended temperature range
Probe and tip specific S-parameters
Full AC calibration of the signal path of the probe and tip is based on a unique S-parameter model
Create a unique DSP filter for each probe and tip
FlexChannel interface for oscilloscope/probe control and usability
Direct control via probe button or oscilloscope menu
Automatic control of probe Settings via oscilloscope
Automatically identifies probes and tips when connected to an oscilloscope
