| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 3天 | 90天 | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |

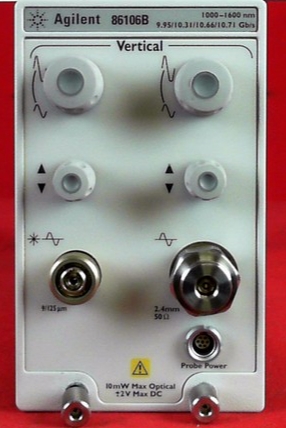

用于9/125光纤的25 GHz光通道
Keysight 86106B拥有一个集成的已校准光通道，和一个可接入的内置OC-192/STM-64滤波器，以执行基于标准的发射机一致性测试。当滤波器切断开时，86106B提供用于高速激光精确表征的28 GHz的未滤波光带宽。它还改善了未滤波通道的频率响应变化，以最大程度地降低了测量的光脉冲失真。40 GHz的电通道可对电波形进行宽带宽测量。
Main characteristics and technical specifications
25 GHz optical channel for 9/125 fiber
Wavelength range: 1000-1600 nm
Typical rms noise: 10 uW (22 GHz bandwidth), 18 uW (28 GHz bandwidth)
Maximum average input power: 2 mW
The reference receiver function (9.953/10.3125/10.664/10.709 Gb/s)
40 GHz electrical channel with 2.4 mm positive input
Typical rms noise: 0.25 mV (18 GHz bandwidth), 0.5 mV (40 GHz bandwidth)
Maximum input signal: +/ -2 Vdc
compatibility
86100A/B/C Infiniium DCA/DCA-J host
Description
The 86106B Keysight has an integrated calibrated optical channel and an accessible built-in OC-192/STM-64 filter to perform standards-based transmitter conformance testing. When the filter is cut off, the 86106B provides an unfiltered optical bandwidth of 28 GHz for accurate characterization by high-speed lasers. It also improves the frequency response variation of the unfiltered channel to minimize the measured light pulse distortion. The 40 GHz electrical channel allows wide band measurement of electrical waveforms.
