Product Description:

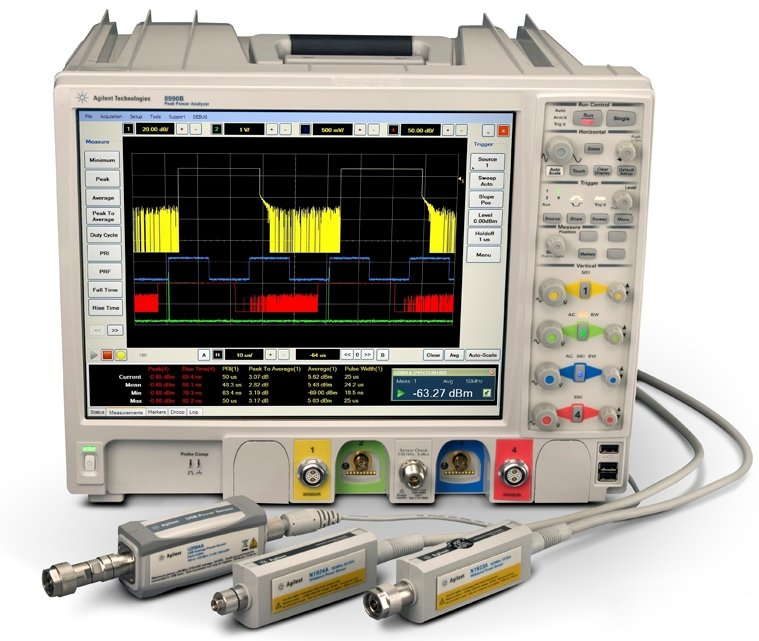

With an easy-to-use and high-performance design and a 15-inch XGA color touch screen, the Agilent 8990B Peak Power Analyzer can display four channel results simultaneously, providing more image detail. The Agilent 8990B peak power analyzer provides a sampling rate of up to 100 MSa/s, giving development engineers the high resolution they need to detect anomalies in signal traces and improve their designs.
The Agilent 8990B Peak Power analyzer offers 15 predefined measurements of pulse parameters, including rise time, pulse tilt, pulse width, and delay. The measurement can be done automatically with two simple steps on the touch screen. These parameters can be used to design, test, and validate power amplifiers, TR modules, transponders, radar testers, and satellite cleanouts, as well as other test equipment, eliminating the need for engineers to perform complex pulse measurements.
Features:
Frequency range: 50 MHz to 40 GHz (depending on sensor)
Dynamic range: -35 to +20dBm (CW) and -25 to +20dBm (pulse)
Short system rise/fall time of 5 nanoseconds (-20 to +20dBm)
100 MSa/ SEC continuous sampling, >1500 readings/SEC
The channel is compatible with U2000 series power sensors that are connected using a USB host
Provides 15 pulse characteristic measurements
