Product Overview:

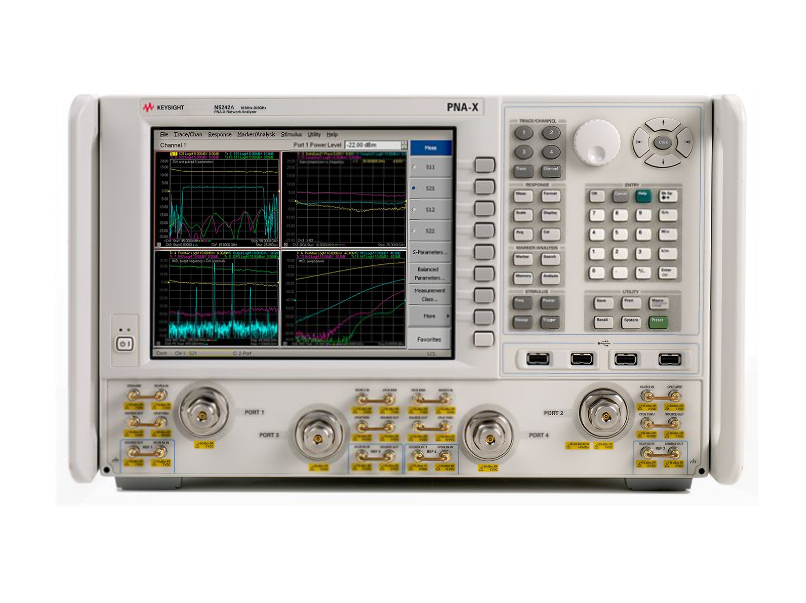

The Keysight N5242A-400 PNA-X network analyzer is the world's most integrated and flexible single-connection microwave test engine for measuring active devices such as amplifiers, mixers and inverters. You can choose from five frequency models to meet your specific device testing needs: 13.5, 26.5, 43.5, 50, and 67 GHz. The PNA-X offers unmatched configurability with a built-in second source, combiner, and internal signal routing switch.
Features:
10 MHz to 26.5 GHz
4 ports with two built-in signal sources
132 dB system and 130 dB receiver dynamic range, 32,001 points, 200 channels, 15 MHz IF bandwidth
High output power (+18 dBm), low harmonics (-60 dBc) and wide power sweep range (38 dB)
Best dynamic accuracy: 0.1 dB compression, receiver input power of +13 dBm
Low background noise of -114 dBm at 10 Hz IFBW
Applications:
S-parameters (CW and pulse)
Noise figure
Gain compression
Interharmonic harmonic distortion
Convert gains/losses
True differential stimulus
Millimeter wave
Antenna test
