Product introduction:

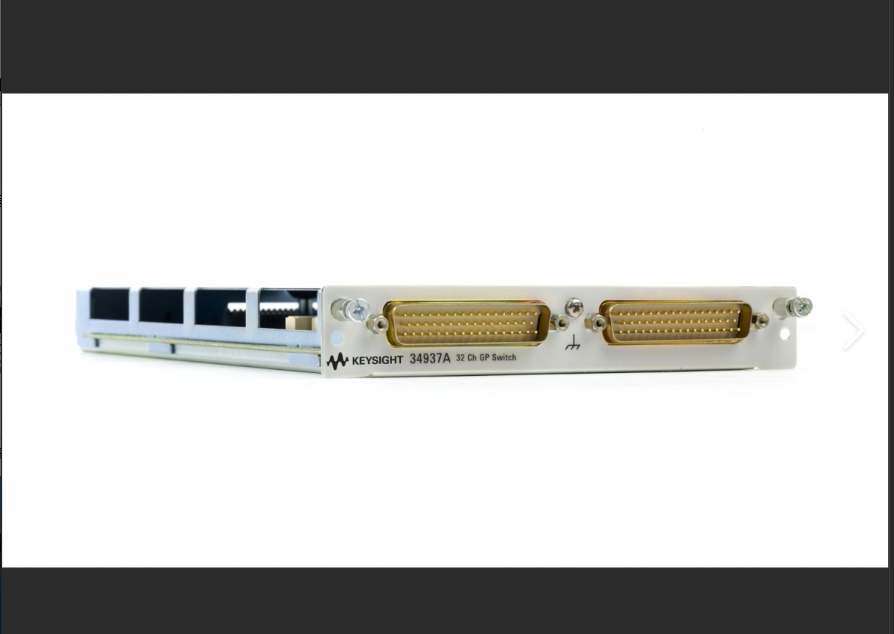

The 34937A is a universal switch module for the 34980A multifunctional switch/measuring unit. It has 28 separate single pole double throw (SPDT) 1A relays and 4 single pole single throw (Type A) 5A relays. The module is used to supply power to the product under test, control the indicator and status lights, and drive the external power relay and solenoid. The Type C channel has 300V, 1A contacts and can handle power up to 50W, while the Type A channel has 30VDC/250VAC, 5A contacts and can handle power up to 150W. Standard 50-pin D-sub connectors allow use with standard cables, wiring terminals, or large-scale interconnection solutions.
Features:
-
28 type C channels, maximum 1A, 50W
-
4 Type A channels, up to 5A, 150W
-
Latching armature relay with relay counter
-
Temperature sensor under superheated conditions
-
Synchronous channel switching
