Product introduction:

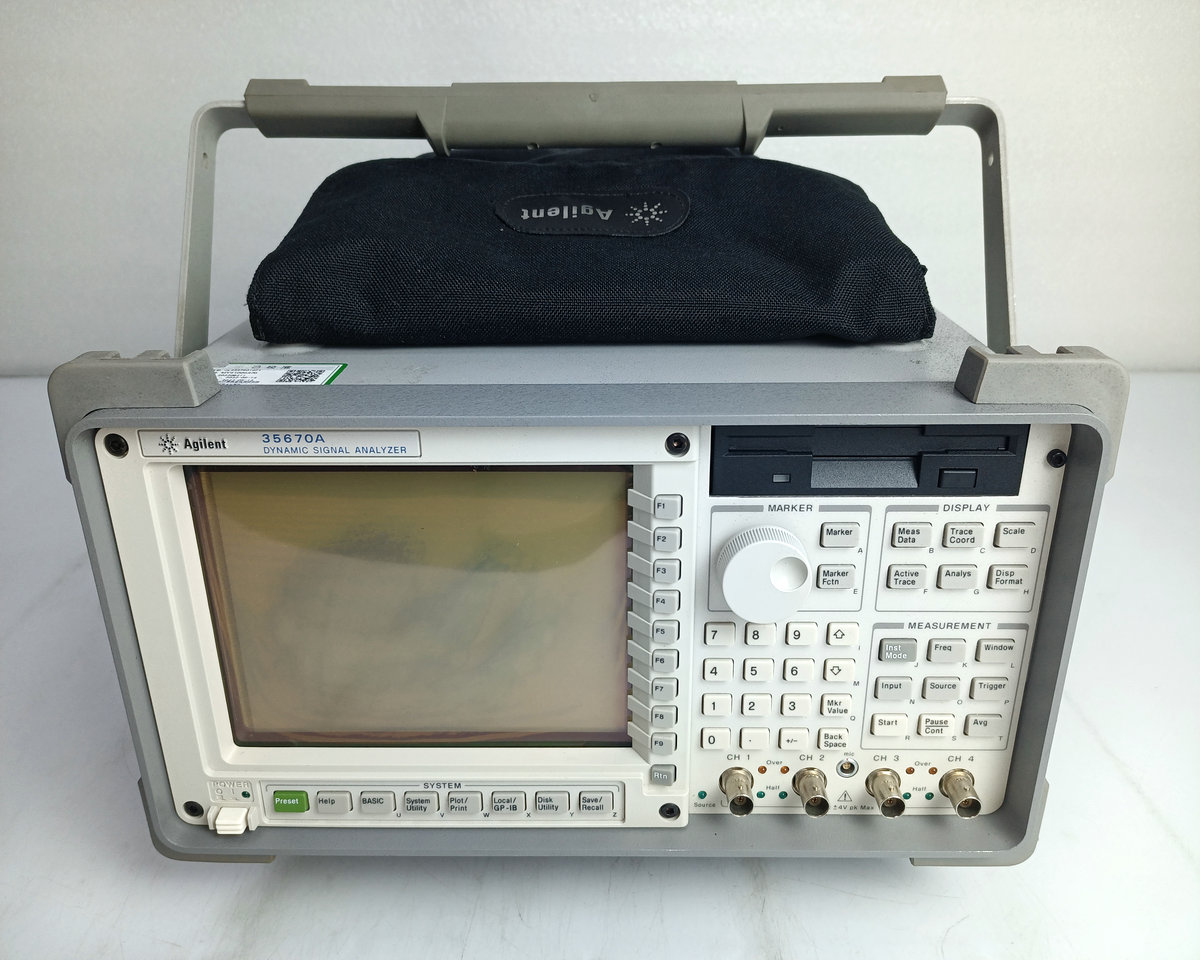

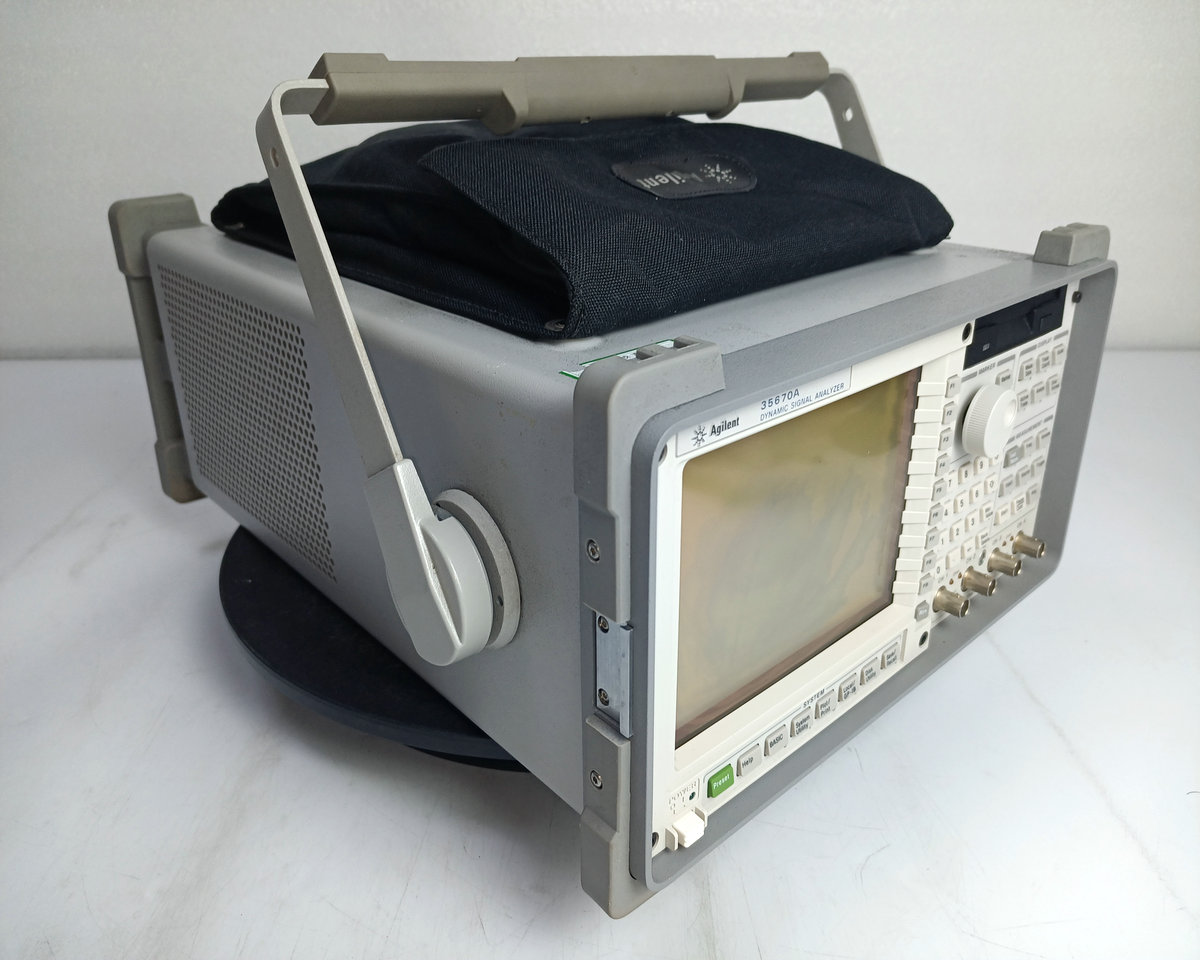

The 35670A is a 102 kHz signal analyzer from Agilent. Engineers use the ability of a signal analyzer to combine spectrum and vector signal analyzers. A signal analyzer is an electronic testing device used to measure the power, amplitude, distortion, phase noise, modulation and demodulation quality of an input signal.
Features:
-
1 channel is 102.4 kHz, 2 channels are 51.2kHz, and 4 channels are 25.6 kHz
-
100, 200, 400, 800 and 1600 line resolution
-
The dynamic range of 90db is from 130db to 130 dB in swept-sine mode
-
Sources: Random, burst random, periodic chirp, burst chirp, pink noise, sinusoidal, arbitrary waveform
-
Measurement: Linear, cross and power spectrum, power spectral density, frequency response, coherence, THD, Harmonic Power, time waveform, Autocorrelation, cross-correlation, Histogram, PDF, CDF
-
Octave analysis triggers waterfall display
-

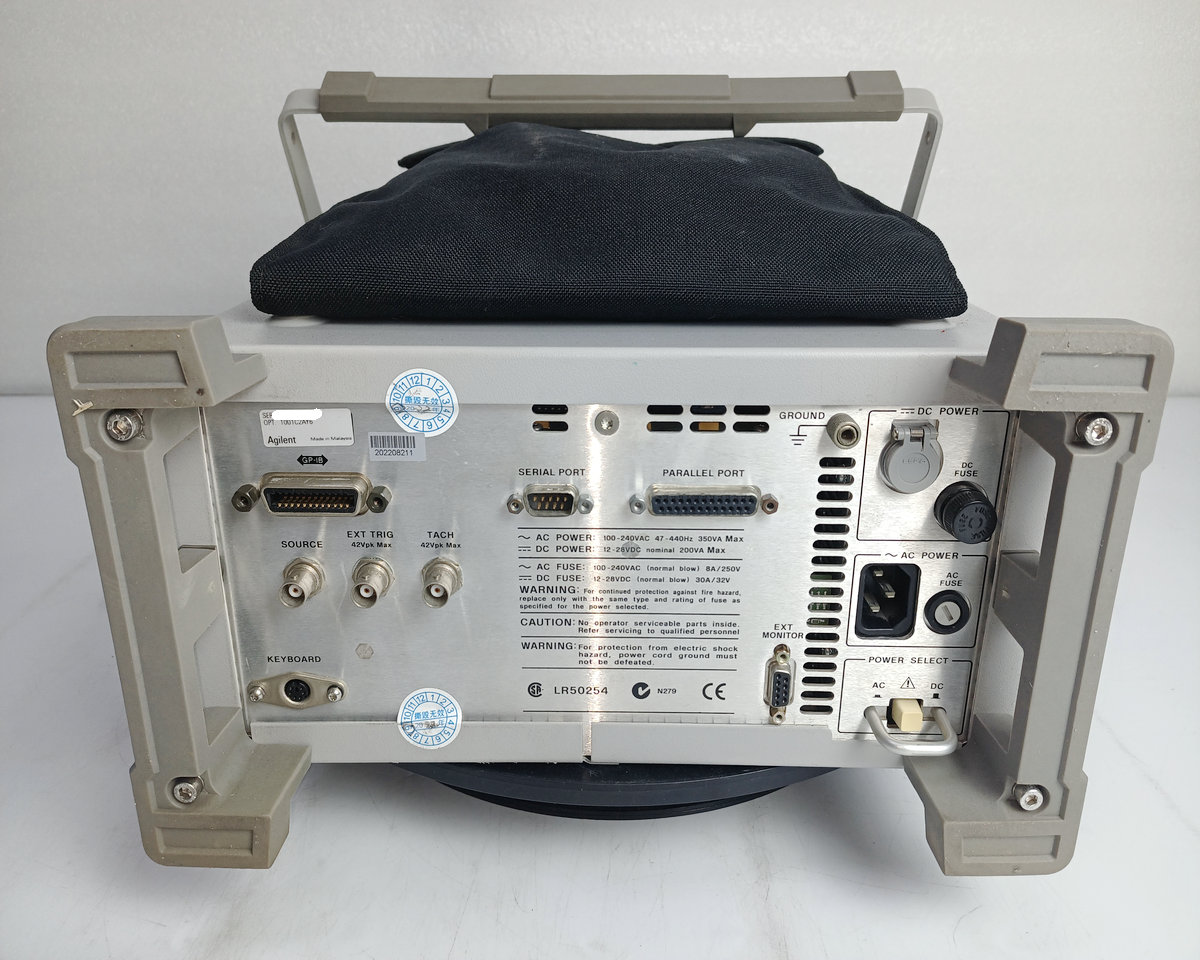

Tachometer input and order tracking with track chart
-
Built-in 3.5 "floppy disk
