Product Description:

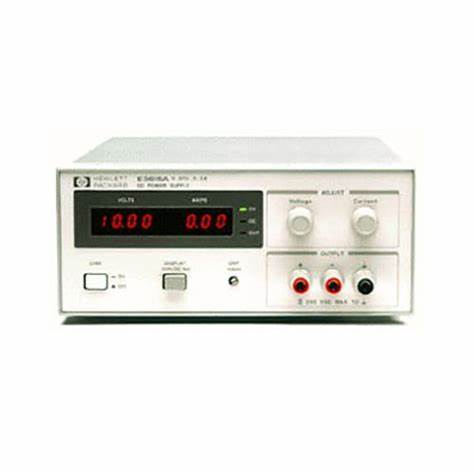

E3610A-E3617A 30-60 W single output power supply is compact and suitable for bench testing. It also has low noise and excellent modulation capabilities, as well as dual range output (E3610A/11A/12A). The E3615A 60W single output power supply is a reliable and convenient desktop power supply that provides stable performance as well as a variety of basic and enhanced features.
0.01% +2 mV load and line regulation
Ripple and noise <200 µVrms
Dual digital voltage and ammeter
Constant pressure, constant current
10 turns voltage and current control
<50 µs transient response, recovery of 10 mV from full load to half load.
E3614-17A: Overvoltage protection, rear output terminal, remote voltage programming (0-10 V) and remote sensing.
These linearly regulated DC power supplies provide reliable, convenient DC power on laboratory workbenches. 10-turn potentiometer and clear voltage and ammeter for easy fine tuning. These models are CV/CC and can therefore be used as voltage or current sources. The "CC Set" button allows you to view the current Settings so that you can easily adjust the current limit. Either the positive or negative terminal can be grounded, generating positive or negative voltage, or can float from the ground to 240V.
E3610A, E3611A, E3612A
These flexible 30 watt DC power supplies feature single outputs in 2 ranges to deliver more current at lower voltage levels.
E3614A, E3615A, E3616A, E3617A
These DC power supplies have many features that are typically only available in high-performance power supplies. Remote sensing technology eliminates voltage regulation errors due to voltage drops in the load leads. The delicate load is protected by the overvoltage protection function. Remote voltage signals can be used to control the output voltage and current levels of the power supply.
Includes user and service manual, calibration certificate and power cord.
