Product introduction:

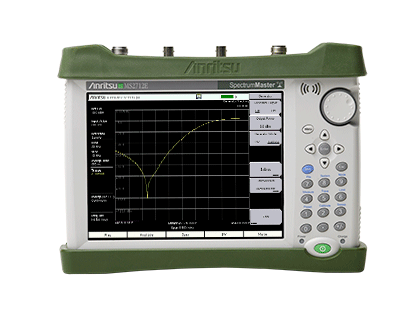

The MS2712E spectrum analyzer you've been waiting for from Anritsu is easy to use, powerful and cost-effective. Whether you are performing complex interference analysis or evaluating signal quality, this product can meet your various needs. Designed for harsh field conditions, the MS2712E Spectrum analyzer enables you to monitor, locate, identify and analyze a wide range of wireless signals, including cell phones, 2G/3G/4G, land mobile wireless systems, Wi-Fi and broadcast signals. With a wide range of options, the versatility of the MS2712E enables you to locate and recognize signals over a wide frequency range, eliminating the need to independently learn how to operate multiple instruments and carry multiple instruments with you.
Features:
-
IEEE 802.16 signal analysis includes fixed WiMAX and mobile WiMAX
-
Digital TV ISDB-T, DVB-T/H signal analysis
-
20 MHz demodulation bandwidth
-
Dynamic range: > 102 dB at 1 Hz RBW
-
DANL: -162 dBm at 1 Hz RBW
-
Phase noise: -100 dBc/Hz Max @10 kHz offset at 1 GHz
-
Frequency accuracy: < ±50 ppb requires GPS on
