Product Description:

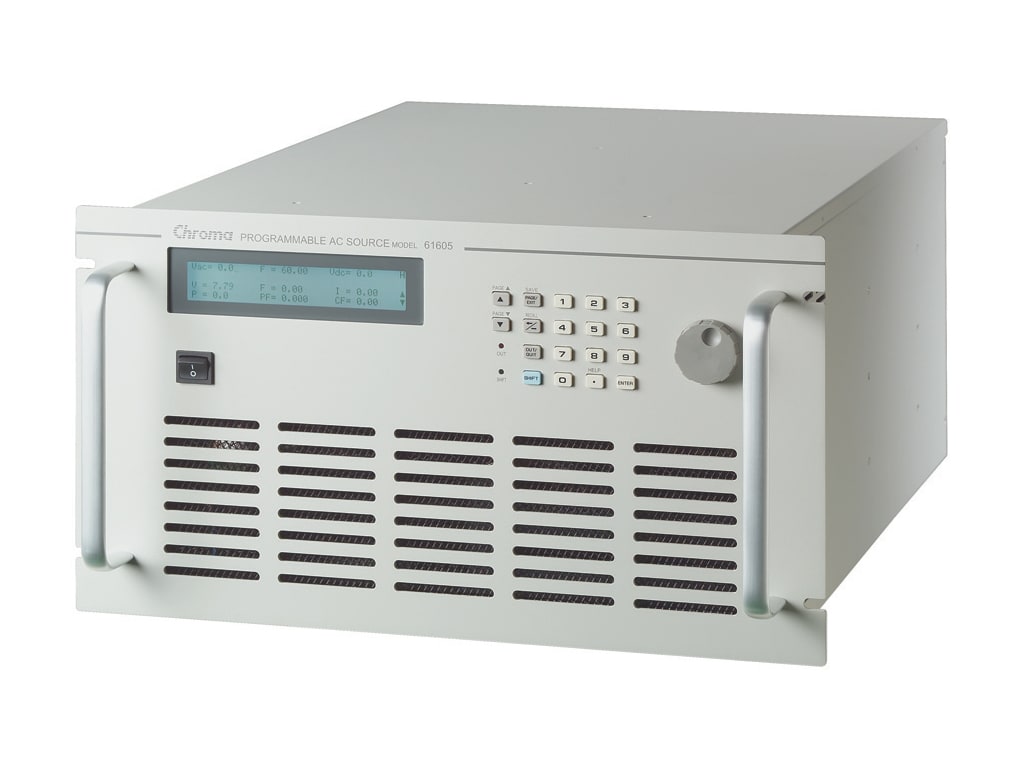

Chroma 61605 provides pure, instrument-grade AC power at a very low cost. The Chroma 61605 offers output voltages from 0 to 300VAC, and frequencies from 15 to 1000Hz. It is suitable for commercial, avionics and military applications ranging from benchtop testing to mass production. The user can change the voltage or frequency in one step, or set the conversion rate to obtain a gradual increase or decrease in voltage and frequency. This helps users easily test the power input range of their products.
The Chroma 61605 programmable AC power supply has built-in 16-bit precision measuring circuit and firmware, which can measure RMS voltage, RMS current, active power, power factor, repeated peak current, surge current, current crest factor, VA (apparent power) and VAR (reactive power). These comprehensive measurements make the Chroma 61605 not only a power supply, but also a powerful power meter.
Features:
-
Voltage range: 0-150V/0-300V/ automatic
-
Frequency: 15Hz - 1000Hz
-
Using advanced PWM technology, small size, light weight
-
Built-in PFC for more than 0.98 input power factor (full load)
-
AC+DC output mode for voltage DC offset simulation
-
Programmable conversion rate Settings to change voltage and frequency
-
Programmable voltage and current limits
