Product introduction:

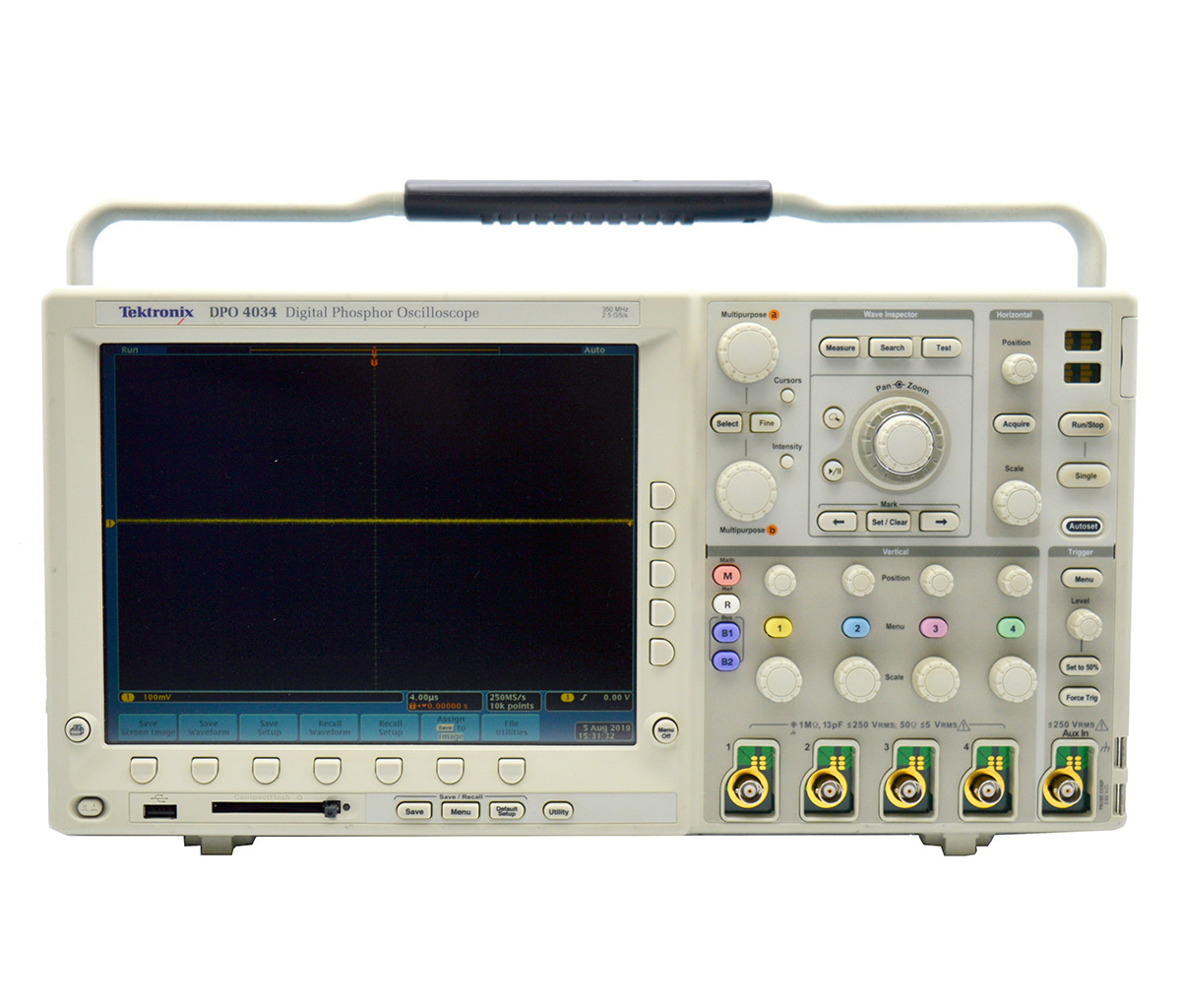

The DPO4000 series digital Fluorescent Oscilloscope (DPO) offers the performance you need to visualize even your most demanding signals. Bandwidth ranges from 350mhz to 1ghz, and with all models offering at least 5x oversampling and sin(x)/x interpolation standards on all channels, you can be confident that even the fastest transient events will be captured and accurately displayed. The standard 10m recording length across all channels enables you to capture long Windows of signal activity while maintaining good temporal resolution.
Features:
-
1 GHz, 500, 350 MHz bandwidth models
-
4-channel model
-
Sampling rate up to 5 GS/s on all channels
-
The recording length of all channels is 10 megabits
-
The maximum waveform capture rate is 50000 wfms/s
-
Wave Checker ® controls provide waveform analysis with unprecedented efficiency
-
I2C, SPI, CAN, LIN, FlexRay, and RS-232/422/485/UART serial trigger and analysis options
-
10.4 inches. (264 mm)XGA color display
-
It's small and lightweight -- just 5.4 inches. (137 mm) deep and 11 lb (5 kg)!
-
USB and CompactFlash in front panel for quick and easy storage
-
Built-in Ethernet port
-
That is' n 'play connectivity and analysis software solutions
-
USB 2.0 device port, PC direct control oscilloscope using USBTMC
-
Advanced trigger kit
-
e*Scope® remote viewing and control
-
Interoperability with Tektronix logic analyzer
-
The TekVPI™ probe interface supports active, differential, and current probes for automatic scaling and cell
-
HDTV and custom video trigger options
