Product introduction:

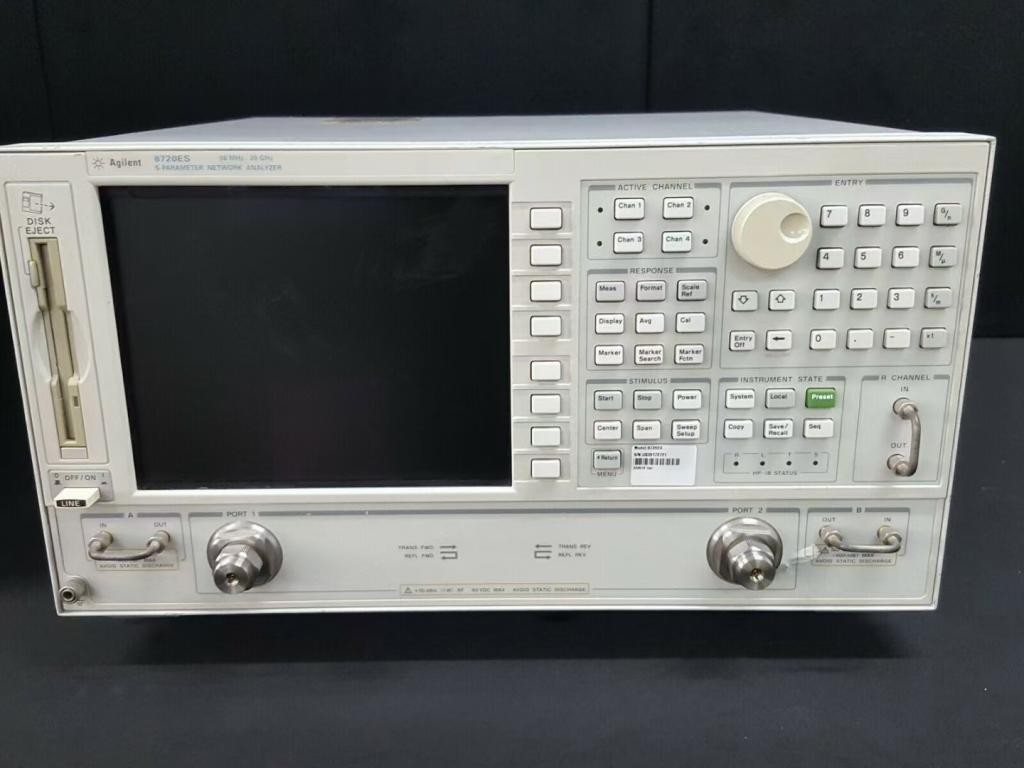

Agilent 8720ES vector network analyzer provides comprehensive RF and microwave component evaluation.
Agilent 8720ES includes an integrated synthetic source, test unit, and tuned receiver. The built-in S-parameter tester provides a full range of forward and reverse amplitude and phase measurements. Internal vector accuracy enhancement techniques include full two-port, adapter removal, and optional TRL calibration.
The Agilent 8720E series includes three T/R and three S-parameter network analyzers with coverage of 13.5GHz, 20GHz and 40GHz.
Features:
-
50MHz to 20GHz
-
Dynamic range of 100 dB
-
Excellent measurement accuracy
-
2 measurement channels
-
4 display channels
-
Frequency and power scanning
-
Fast scanning and data transfer speed
-
Pass/fail tests, powerful markup features
-
Electrical calibration (ECal)
-
Automation of test sequences for internal use
-
Optional time domain, high power test device, four samplers and TRL calibration, direct sampler access, frequency bias mode
