Product Introduction:

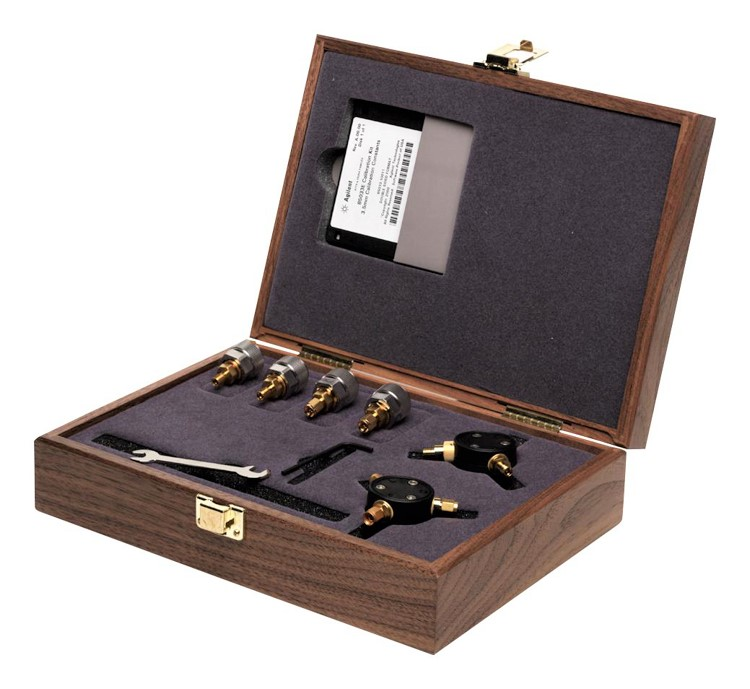

The Agilent Part 85033E calibration kit contains standard Agilent network analyzers for calibration accuracy of 3.5mm. Standard includes fixed terminal, open circuit, and short circuit in both male and female head. A torque wrench is also included for proper connection. The kit is specified by DC to 9 GHz
Features:
-
N type (Yin head), open circuit, short circuit, load and through
-
Dc to 9 GHZ
-
Open circuit phase error: 0 to 4GHz≤2.0°, 4 to 9GHz≤3.0
-
Short circuit phase error: 0 to 9GHz≤1.25
-
Load return loss: 0 to 6GHz≥42dB,6 to 9GHz≥35dB
-
Through, Yin head to Yin head, insertion loss: 0 to 4GHz≤0.05dB,4 to 9GHz≤0.1dB
-
Size: Height × width × depth ~104×74×22 mm
