浏览次数：326
| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 3天 | 90天 | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |
产品描述：

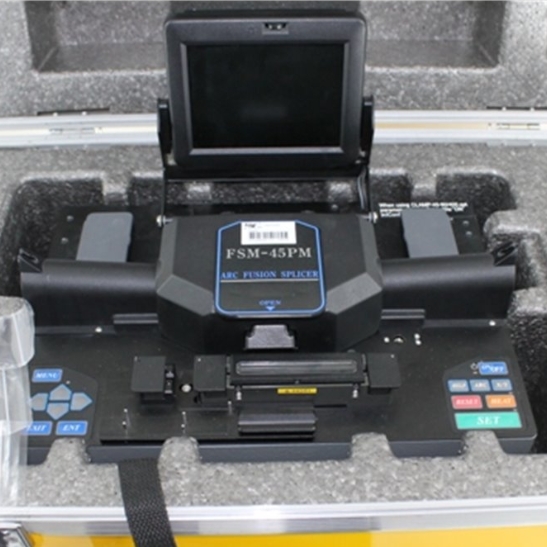

Fujikura公司早在1983年光纤熔接机就推出了世界上第一台保偏熔接机，凭借着强大的技术实力，不断改进创新，先后推出了10PM、20PM、20PM-II、40PM、45PM、100P等六代保偏熔接机，技术遥遥领先于其他同类产品。

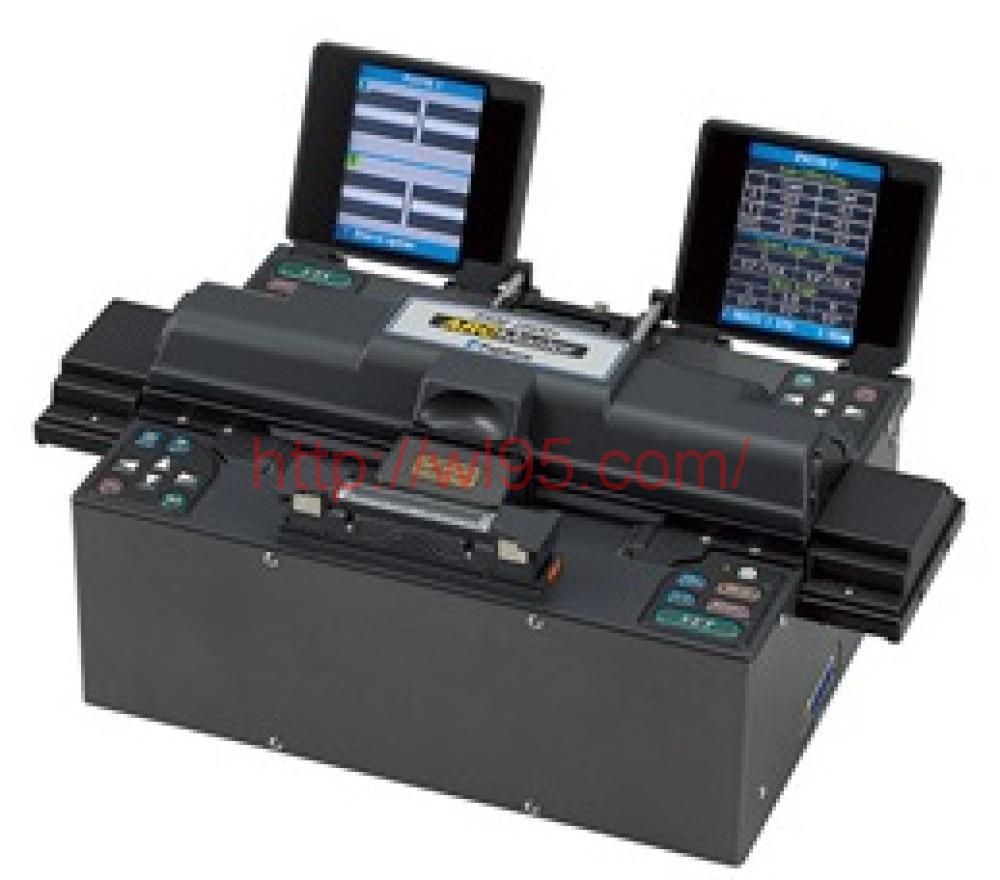

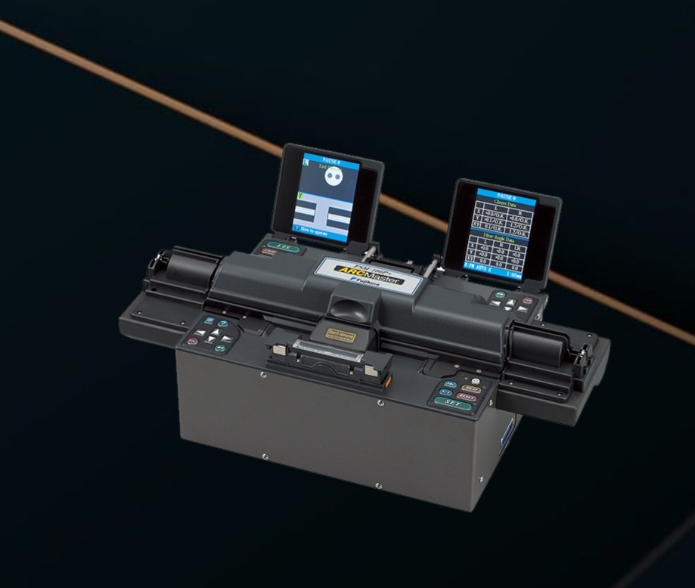

FSM-100P继承了45PM的经典设计：采用双CCD光路、X-Y轴同时对准、PAS专利对轴、夹具夹持等技术；结构紧凑合理、开放式平台、重量轻、操作简单；适用于业内所有主流光纤。
同时，新一代FSM-100P保偏熔接机具有自己的独创技术，可有效控制光纤熔接的“电弧等离子区”，能为各种保偏光纤熔接提供不同的熔接方式，被誉为“ARC Master”熔接机；夹持系统更加稳定，不用更换任何配件就可以稳定固定包层直径从60~500μm的光纤；增加了IPA(Interrelation Profile Alignment)对轴模式。提高了对轴精度，能够得到各种类型PM光纤的精准的PER估算结果；最短光纤剥除长度3mm；改进了损耗估算技术，大大提高了损耗估算的精度，具有多样的光纤观察系统和电弧校准系统，使熔接效果更加稳定可靠。产品具有极佳的人工性能设计，丰富的外部接口和软件在线升级功能，为客户提供了完美的使用环境。
产品特征
放电控制功能
大口径光纤熔接功能
3种放电校正功能
2种损耗测试功能
扫描放电功能
光纤学习功能
光纤加工功能
EndView 观测功能（FSM-100M+， FSM-100P+）
PM光纤熔接功能（FSM-100P， FSM-100P+）
光纤激光器
光通信仪器
光设备
医疗仪器
传感系统
研究开发
|
其主要参数指标如下： |
||||||||||||||||||||||||||||
|
|
Product Description:
Fujikura introduced the world's first polarization-maintaining fusion splicer as early as 1983. With its strong technical strength, Fujikura has continuously improved and innovated. It has launched 10PM, 20PM, 20PM-II, 40PM, 45PM, 100P, etc. The six-generation polarization-preserving welding machine is far ahead of other similar products. The FSM-100P inherits the classic design of 45PM: double CCD optical path, XY axis simultaneous alignment, PAS patented shaft, clamp clamping and other technologies; compact and reasonable structure, open platform, light weight, easy operation; suitable for all in the industry Mainstream fiber. At the same time, the new generation FSM-100P polarization-maintaining fusion splicer has its own original technology, which can effectively control the "arc plasma zone" of fiber fusion welding, and can provide different welding methods for various polarization-maintaining fiber fusion. It is known as "ARC Master". The welding machine; the clamping system is more stable, and the fiber with the cladding diameter from 60~500μm can be stably fixed without replacing any accessories; the IPA (Interrelation Profile Alignment) axis mode is added. Improved axis accuracy, accurate PER estimation results for various types of PM fibers; shortest fiber stripping length of 3 mm; improved loss estimation techniques, greatly improved loss estimation accuracy, multiple fiber viewing systems and arc calibration The system makes the welding effect more stable and reliable. The product has excellent artificial performance design, rich external interface and software online upgrade function, providing customers with a perfect environment for use.
product features
Discharge control function
Large diameter fiber fusion function
3 kinds of discharge correction function
2 loss test functions
Scan discharge function
Fiber learning function
Fiber processing function
EndView observation function (FSM-100M+, FSM-100P+)
PM fiber fusion function (FSM-100P, FSM-100P+)
use
fiber-optic laser
Optical communication instrument
Optical device
Medical equipment
Sensing system
research and develop
