Product introduction:

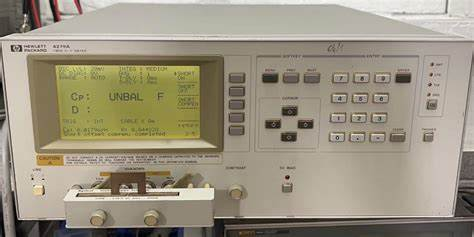

The HP4286A RF LCR tester provides accurate, reliable and fast measurements in the 1MHz to 3GHz frequency range to improve the quality and productivity of testing electronic components on the production line. Different from reflection measurement technology, DC voltage measurement technology can be used for accurate measurement in a wide range of impedance.
Features:
-
Level monitoring function: voltage, current
-
Basic Z accuracy: ±1.0%
-
Measurement range: 200mΩ ~ 3kΩ(1MHz, accuracy ≤10%)
-
Measurement time: 9ms per point (speed)
-
Rdc measurement: Can be used for contact inspection
-
Calibration: Open/short/load/low loss capacitance
-
Compensation: open/short circuit, electrical length
-
Mass storage features: 30MB solid state mass storage or 2 GB hard disk (select option)
-
Interface: GPIB,LAN(10Base-T/100Base-Tx automatic selection), processor interface used Agilent HP 4286A precision LCR tester
-
Display: 8.4-inch color LCD monitor
