Product Description:

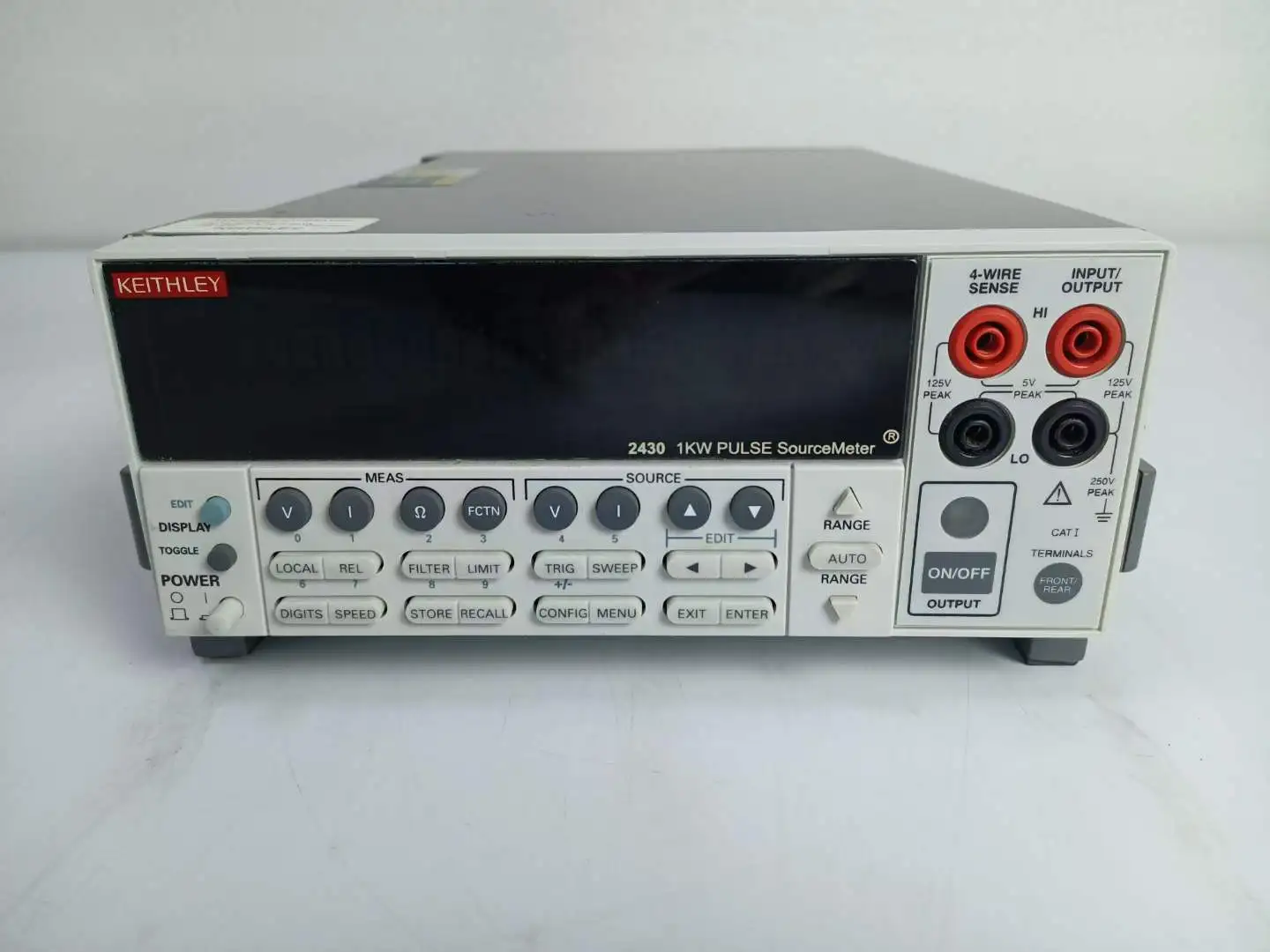

2430-C SourceMeter; 100V, 10A, 1000W
The 2400 Series SourceMeter SMU series provides accurate voltage, current source and measurement functions. Each model offers a highly stable DC power supply and a true instrument-grade 6½ bit multimeter. In operation, they can act as voltage sources, current sources, voltmeters, ammeters, ohmmeters, and electronic loads. The 2400 Series SMU offers IV functionality from 1100V to 100nV and current from 10.5A pulses to 1pA.
Features:
-
Five instruments in one (IV source, IVR measurement)
-
Seven models: 20-100W DC, 1000W pulse, 1100V to 1µV, 10A to 10pA
-
Source and host (four-quadrant) operations
-
Basic measurement accuracy of 0.012% and 6½ bit resolution
-
2-wire, 4-wire and 6-wire remote V-source and measurement sensing
-
1700 readings per second at 4½ bit via GPIB
-
Pass/fail comparator for quick sort/merge
-
Available high-speed induction lead contact check function
-
Programmable DIO port for automation/processor/automatic control (except Model 2401)
-
Standard SCPI GPIB, RS-232 and Keithley Trigger Link interfaces
-
Giseli LabTracer 2.0 IV Curve Tracking Application (Download)
