Product Description:

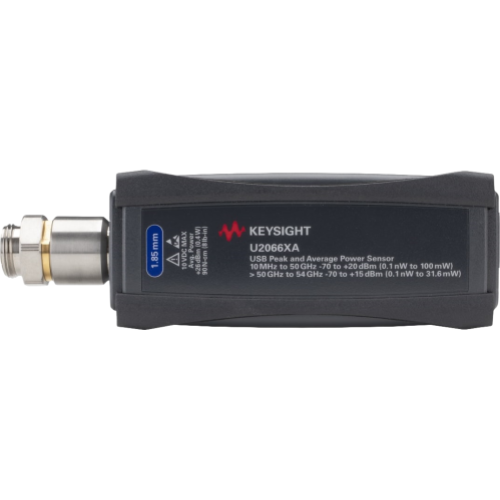

Keysight U2066XA wide dynamic range power sensor can accurately measure the power of various modulated signals. With a wide dynamic range of -70 to +26 dBm, these USB/LAN power sensors perform highly accurate and repeatable power measurements on a wide range of modulated signals at speeds up to 50,000 readings per second, enabling higher production throughput. Built-in zeroing and calibration functions help users save measurement time and reduce measurement uncertainty. The U/L2050/60 X series power sensors are powered by Keysight BenchVue software. With BenchVue software, you can easily control the power meter to record data and display the measurement results in various forms without programming. The average power measurement and analysis can be performed simply by connecting this sensor to a PC with the BenchVue BV0007B Power meter/Sensor Control and Analysis application software installed.
Features:
-
Frequency range: 10 MHz to 54 GHz
-
USB connectivity and wide dynamic range (-70 to +20 dBm (10 MHz to 50 GHz frequency) / -70 to +15 dBm (> 50 GHz to 54 GHz frequency)) for small signal measurements
-
5 MHz video bandwidth and 20 MSa/s single real-time capture
-
Variable sampling rate of 1 MSa/s and data memory of 1 MSa support long sampling time
-
Fast real-time measurements up to 50,000 readings per second
-
Real-time measurement with zero silence time ensures that each successive pulse is measured
-
The average mode time selective function enables average power measurement and time selective average power measurement over the entire dynamic range
-
Built-in zeroing and automatic calibration can save measurement time and reduce measurement uncertainty
-
The instrument now has a built-in BenchVue software license (BV0007B). BenchVue helps you easily connect and control instruments to automate test sequences
