Product Description:

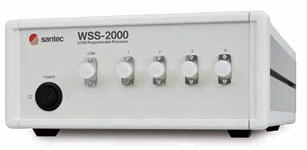

WSS-2000 is a programmable optical filter based on LCOS. The technology inside Santec's proprietary LCOS(Silicon based Liquid Crystal)WSS-2000 is state-of-the-art in flexibility, enabling users to program an unlimited range of optical filtering, attenuation and switching schemes. In addition, a phase control function is also available. The WSS-2000 is a technology that supports the next step of investigation using fiber optics as a light source to generate an equalizer for high-speed signals in optical networks, as an adaptive channel for advanced optical transmission systems (DWDM, OFDM), such as a WSS simulator or as a flexible test and measurement system
Features:
-
Generate arbitrary editable waveform and pulse shaping
-
High resolution wavelength and band control based on LCOS. Wavelength and frequency band setting resolution: 0.78GHz
-
Excellent optical filtering with steeper edges 400dB/nm(typical value)
-
Optional switching function: optical switch (1×1, 1×2, 1×4)
-
Optional phase control function
