Product Description：

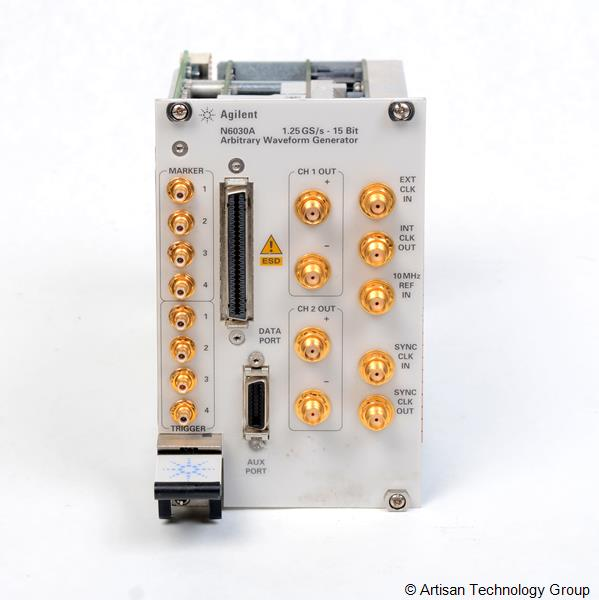

The Agilent N6030A arbitrary waveform generator offers unprecedented performance for creating complex wideband waveforms. A single instrument provides high sampling rates and high resolution, enabling designers to create the ideal waveform for accurate testing of radars, satellites, and frequency-agile systems. Each channel of the N6030A offers a modulation bandwidth of 500 MHz and a spurious-free dynamic range of over 65 dBc. When combined with a wideband I/Q upconverter, the N6030A can achieve modulation bandwidth of 1 GHz at microwave frequencies, providing realistic signal simulation for IF and RF subsystem tests.
Features:
1.25 GS/s sampling clock
15 bit vertical resolution
Two-channel operation
Differential and single-ended output
Waveform memory up to 16 MS (Option 016)
Multi-module synchronization
