Product Introduction:

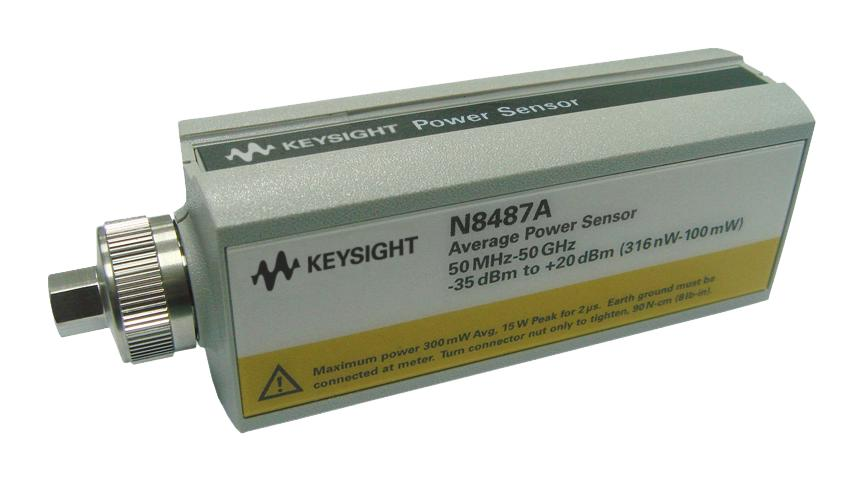

Keysight N8480 series power sensor is an alternative solution to 8480 series power sensor. The new power sensor combines the EEPROM feature to enable the user to calibrate the power sensor without manually entering a calibration factor into the power meter. When compared to traditional 8480 series power sensors, the N8480 series offers significant improvements, such as wider dynamic and frequency ranges, better accuracy, linearity, repeatability, and VSWR.
Features:
-
The EEPROM that stores calibration coefficients eliminates the difficulty of manual input,
-
The frequency ranges from 50 MHz to 50 GHz
-
Dynamic range from -35 dBm to +20 dBm
-
Power linearity less than 1%, excellent mismatch uncertainty and high precision power repeatability SWR
-
Accurately calibrated and traceable to National Institute of Standards and Technology (NIST) standards
-
SCPI code compatible with 8480 series (optional CFT)
