销售是德科技 MXR258A Infiniium MXR 系列实时示波器

浏览次数:176

产品参数

选件 是否计量 发货周期 保修时间 成色
否 3天 90天 8成新
所在地 机身号 状态 资料下载
深圳市 完好
更新日期:2025-04-23
联系电话:0755-86016691

* 产品描述

产品描述:

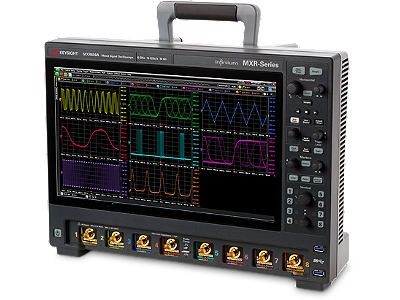

Keysight MXR258A 是一款 8 通道 2.5GHz 模拟带宽 Infiniium MXR 系列示波器,最大采样率为 16GSa/s。

MXR258A 具有 15.6 英寸全高清触摸屏显示器,支持双屏。

Infiniium MXR 系列在每个通道上提供高达 6 GHz 的带宽和 16 GSa/s 的采样率(提供 4 通道和 8 通道版本)。标配集成的 4 位 DVM 和 10 位计数器。



特点:



  • 全部 4 个或 8 个模拟通道,提供 500 MHz 至 6 GHz 带宽
  • 与 Infiniium UXR 系列使用相同的 ASIC,测试速度实现显著提高
  • 高达 9.0 的 ENOB 和最低 43 µV 的噪声,确保测量结果准确可靠
  • 8 合 1 综合型仪器可以提供更多功能:示波器、逻辑分析仪、协议分析仪、DVM、计数器、实时频谱分析仪、波特图仪、波形发生器
  • 可以进行全面升级――包括通道数升级

详细信息

Product Description:

The Keysight MXR258A is an 8-channel 2.5GHz analog bandwidth Infiniium MXR series oscilloscope with a maximum sampling rate of 16GSa/s.

The MXR258A features a 15.6-inch full HD touchscreen display that supports dual screens.

The Infiniium MXR series offers up to 6 GHz of bandwidth and a sample rate of 16 GSa/s on each channel (available in 4-channel and 8-channel versions). Integrated 4-bit DVM and 10-bit counter come standard.



Features:



All 4 or 8 analog channels, providing 500 MHz to 6 GHz bandwidth
Using the same ASIC as the Infiniium UXR family, the test speed is significantly improved
Up to 9.0 ENOB and a minimum noise of 43 µV ensure accurate and reliable measurement results
8 in 1 comprehensive instrument can provide more functions: oscilloscope, logic analyzer, protocol analyzer, DVM, counter, real-time spectrum analyzer, Baud chart instrument, waveform generator
Full upgrades are possible - including the number of channels
