Product Description:

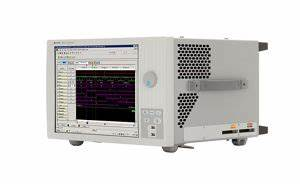

The 16850 Series portable logic analyzers provide the industry’s fastest timing capture with deep memory for fast digital debug.
Features:
Timing analysis (asynchronous sampling)
-
2.5 GHz / 5 GHz (400 ps / 200 ps) deep conventional and transitional timing analysis (full / half channel)
-
Up to 128M / 256M deep memory (full / half channel)
-
12.5 GHz (80 ps) Timing Zoom with 256 K memory
State analysis (synchronous sampling)
-
350 MHz state clock / 700 Mbps data rate (standard)*
-
700 MHz state clock / 1400 Mbps data rate (optional)*
-
Up to 128M deep memory
-
Reliable measurements on eye openings as small as 200 ps by 100 mV
Trigger sequencer
Probing
-
Single-ended direct connect flying lead, Mictor and Soft Touch Pro
-
Compatible with U4201A cable plus any 90-pin header probes
