Product Description:

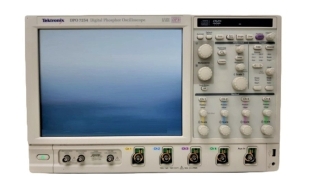

The Tektronix DPO7254 Digital Oscilloscope 2.5 GHz, 4 CH is a digital phosphor oscilloscope that provides a solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging and testing sophisticated electronic designs. This oscilloscope features exceptional performance in signal acquisition and analysis, operational simplicity and sophisticated debugging tools to accelerate your day to day tasks. The 12.1%22 touch screen and the intuitive user interface provide easy access to the maximum amount of information. The MyScope feature allows users to create their own control windows with only the controls, features, and capabilities that they care about using a simple, visual, drag and drop process. Once created, these custom control windows are easily accessed through a dedicated MyScope button and menu selection on the oscilloscope button/menu bar, just like any other control window, enabling each person who uses the oscilloscope in a shared environment to have their own unique control window. Everything the user needs is found in one control window rather than having to constantly navigate through menu after menu to repeat similar tasks.
Features:
-
Up to 40 GS/s Real-time Sample Rate on One Channel and up to 10 GS/s on All Four Channels
-
Up to 500 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation
-
>250,000 wfms/s Maximum Waveform Capture Rate Up to 310,000 Waveforms per Second with FastFrame™ Segmented Memory Acquisition Mode
-
User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
-
MyScope ® Custom Windows and Right Mouse Click Menus for Exceptional Efficiency
