产品描述：
83485A是一个光电模块。它包括两个测量通道，一个光学的和一个电子的。每个通道都有两个可选择的带宽设置。在12.4 GHz的低带宽模式下，示波器的噪声性能非常出色，而在20 GHz的低带宽模式下，对高速信号的保真度更高。
集成光通道通过消除与使用外部接收器相关的信号失真电缆和连接器来减少失配损失的变化，以便准确地表征光波形。光学通道在1310nm和1550nm进行校准，以提供以光功率单位准确显示接收到的光学波形和测量信号平均功率。
产品特点：
• 12.4 GHz和20 GHz光信道
• 12.4 GHz和20 GHz电子通道
• 用于收发信机一致性测试的可切换SDH/SONET滤波器
• 触发到主机的通道输入
Product Description:

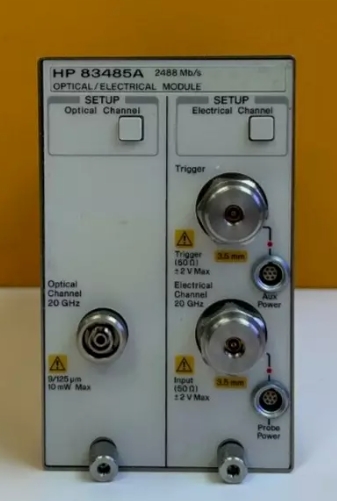

The 83485A is an optical/electrical module. It incorporates two measurement channels, one optical and one electrical. Each channel has two selectable bandwidth setting. In the Lower bandwidth modes of 12.4 GHz, Oscilloscope noise performance is excellent, while the 20 GHz allows greater fidelity for high speed signals.
The integrated optical channel reduces mismatch loss variation by eliminating signal distorting cables and connectors associated with the use of external receivers in order to accurately characterize optical waveforms. The optical channel is calibrated at 1310nm and 1550nm to provide both accurate display of the received optical waveform in optical power units and measurements of the signal average power. In addition, the user cal feature provides for consistent accuracy at any wavelength between 1200nm and 1600nm using a source and power meter.
Instrument Features:
12.4 GHz and 20 GHz Optical Channel
