Product Description:

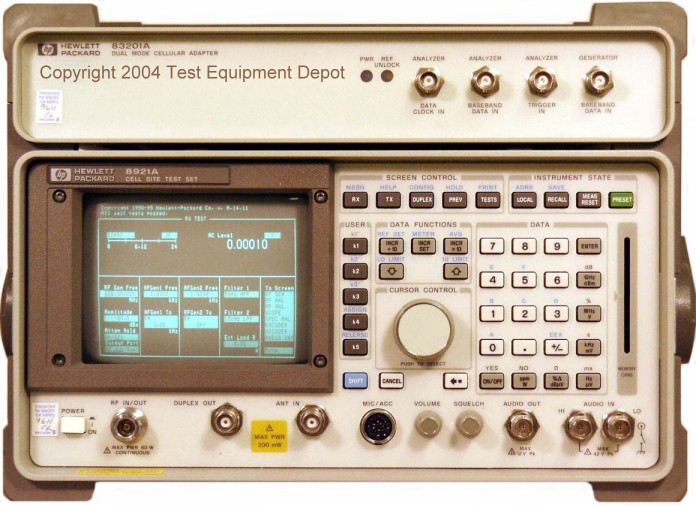

The Agilent / HP 8921A cell site test set is a highly-portable, integrated solution for the installation and maintenance of AMPS and TACS cell sites. The HP 8921A incorporates more than twenty powerful instruments into a compact, 38-pound package. The integral IBASIC controller in the HP 8921A runs the HP 11807B cell site test software to fully automate base station test and adjustment procedures. Automation combined with accurate measurements increases technician efficiency to speed installation and maintenance procedures.
Beyond testing analog AMPS and TACS base stations, the HP 8921A is ready to grow with your measurement needs for digital cellular systems with upgrades available for: TDMA, CDMA, CDPD, PCS (17170-1990 mHz).
Features:
-
AM/FM signal generator
-
AM/FM modulation analyzer
-
Duplex offset generator
-
RF power meter
-
RF frequency counter/frequency error meter
-
Audio frequency counter and power meter
-
AC/DC voltmeter
-
SINAD/SNR/distortion meter
-
Two variable frequency AF generators
-
Digital oscilloscope
-
Built-in IBASIC controller
-
Spectrum analyzer with tracking generator
-
Adjacent channel power meter
-
Signaling encoder and decoder
-
High-stability timebase
-
DC current meter
-
HP-IB/RS-232/parallel remote interfaces
-
Upgradability to TDMA, CDMA, CDPD, or PCS test capability
