Product Description:

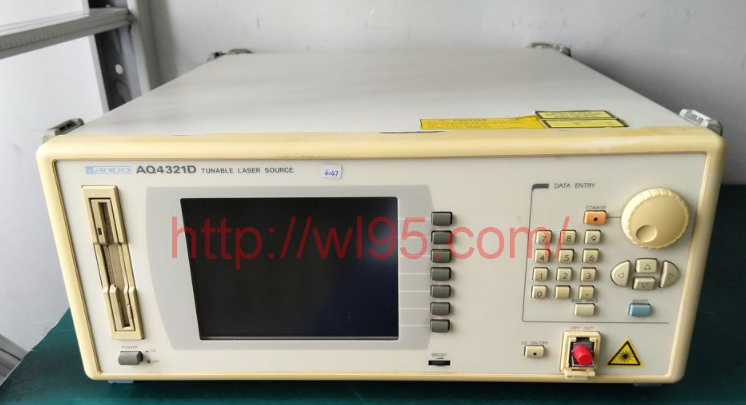

Ando AQ4321D Tunable Laser Source is a high-precision, tunable laser that is designed for evaluation of DWDM systems and components. The AQ4321D Tunable Laser Source provides a wide wavelength tuning range with excellent and precise accuracy. With its high output power, high SMSR, and stability, the AQ4321D is an excellent choice for the complete characterization of optical components.
The Ando AQ4321D Tunable Laser Source features an absolute wavelength calibration function that uses an internal gas cell absorption line. This calibration function provides highly accurate, reliable measurements on DWDM components. The interior of the AQ4321D features a precision motor that achieves wavelength tuning by controlling the position of optical grating at the sub-micron level. A portion of the optical output is extracted and goes through the reference gas cell for wavelength offset calibration. To ensure long-term high wavelength accuracy and high output stability, the optical module within the AQ4321D is constantly monitored by a photo detector; also, an automatic power control circuit is used to maintain very high stability in output level.
Features:
-
Continuous Sweep
-
High Optical Output
-
Wavelength Calibration Function
-
High Wavelength Accuracy (±10 pm at 1520 nm)
-
200kHz to 200MHz Spectral Width
