Product introduction:

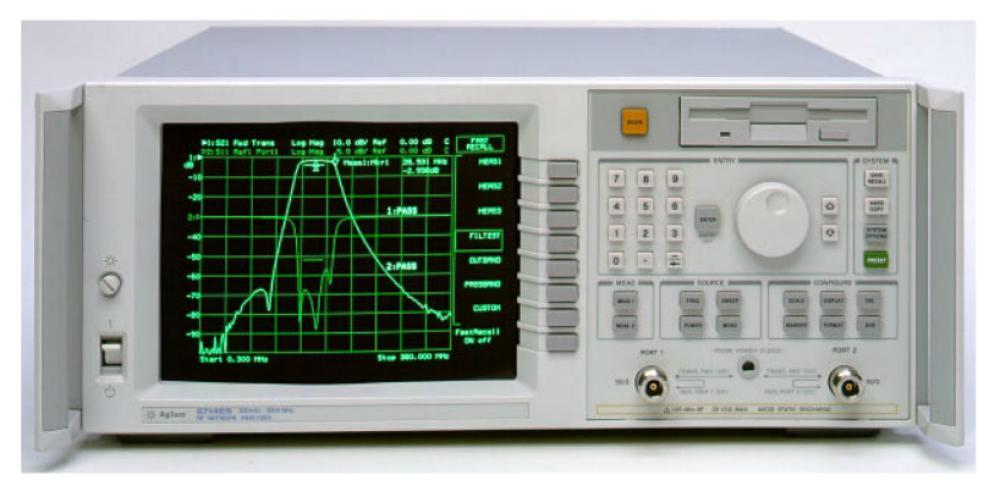

Agilent 8714ET is a transmission/reflection test unit with full range of amplitude and phase measurement capabilities. Two separate channels measure and display two device parameters, such as transmission and reflection responses, which can be in different formats, including displaying complex impedance, SWR, and delay in cartesian coordinates, polar coordinates, or Smith plots. These analyzers also utilize advanced vector error correction technology to improve measurement accuracy.
For active and passive devices testing a wider range of output power levels, Option 1E1 adds a 60dB stepping attenuator as a standard feature, which extends the minimum power level setting to -60dB. Available in two types of 50Ω and 75Ω.
Features:
-
Narrow band and wide band detection
-
100 dB dynamic range
-
Real-time scan speed (40 ms/ scan)
-
Integrated S-parameter test device
-
Synthetic source with 1Hz resolution
-
Standard LAN interface
-
Standard internal Keysight Instrument BASIC (IBASIC)
-
Standard 2, 6, and 12 port switching test devices
-
Optional fault location and SRL measurement
