Product introduction:

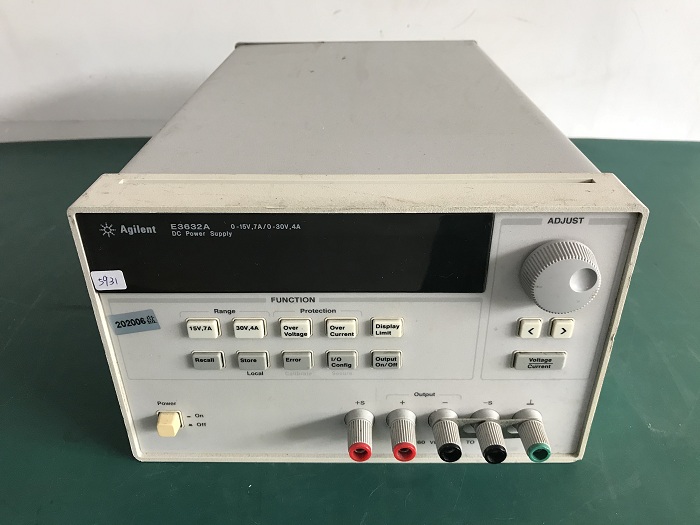

E3632A-E3634A 120-200 W GPIB single-channel power supply provides dual range output and is compact enough to be used as a desktop power supply. It also has low output ripple and noise characteristics and built-in measurement and basic programming capabilities, as well as GPIB and RS232 interfaces. Keysight E3632A 120W GPIB single-channel output power supply is designed for manual test and basic automatic test optimization of high performance power supply. It perfectly integrates the functions of bench power and the characteristics of system power to help improve measurement quality and shorten test time.
Features:
-
Range: 1:0 to 15 V, 7 A
-
Range 2:0 to 30 V, 4 A
-
Programming accuracy (25°C ±5°C)
-
Normal mode voltage: <350 µVrms/2 mVpp
-
Normal mode current: <2 mA rms
-
Common-mode current: < 1.5µA rms
