Product Description:

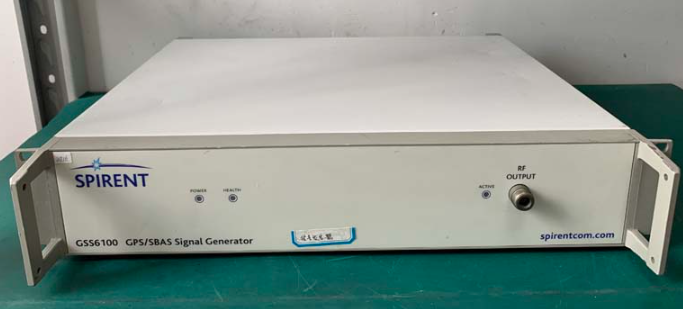

The Spirent GSS6100 is designed specifically for high volume manufacturing test applications for devices that include a GPS L1 C/A code receiver.
For many applications, a single channel GPS signal simulator is the preferred way to ensure that each device produced meets defined parameters. While multi-channel GPS testing is essential during R&D, integration and verification testing, in a manufacturing environment many applications prefer a single channel to stimulate the receiver in a test mode. Controlled GPS testing in this way assures correct assembly and verifies expected performance parameters, typically C/No within a specified range for a given RF input power level.
Features:
-
1 channel GPS L1 C/A code
-
GPIB (IEEE488), USB or RS232 control interfaces
-
Alternative "instant start" mode at power-on, based on pre-defined parameter values
-
Supplied SimCHAN PC software allows use in instrument mode as an alternative to GPIB (PC not supplied)
-
User control over test parameters including power level, Doppler, PRN, GPS time and data message
-
Rack mount 2U chassis
-
Comprehensive control ICD for easy integration into manufacturing test rigs
-
In-rack annual calibration procedure
-
L1 SBAS message support
-
Easy integration with ATE control systems and other instruments
-
Configurable to minimise test time per device
-
In-rack calibration ensures minimal downtime and disruption
-
In-region and in-country Spirent maintenance and repair service
-
Controlled testing assures shipped device quality
-
Industry-leading stability, quality and reliability
-
May be synchronized to other systems via 1PPS/Trigger, frequency standard input/output and 1PPS output
Specifications：
-
Output Frequency
-
Nominal carrier: 1575.42MHz
-
Doppler range: ± 15,000 m/s
-
Relative frequency: ± 78.8 kHz
-
Stability: < ±1x10-9 /day
-
Signal Level
-
Nominal: -130dBm (front panel), -70dBm (rear panel)
-
Range: ±20dB
-
Resolution: 0.1dB
-
Accuracy: ±1dB RSS
-
Signal Quality
-
Spurious: < -30dBc (in GPS band)
-
Carrier Phase Noise: < 0.1 rad RMS
