Product introduction:

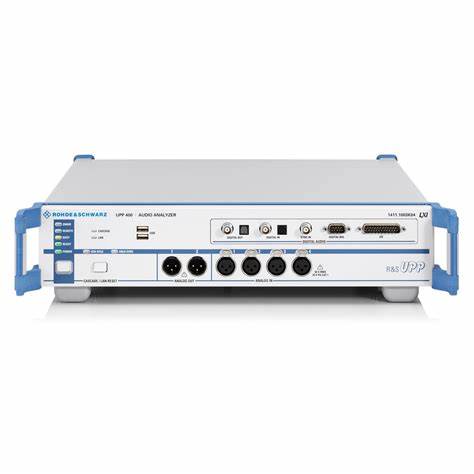

The &S®UPP is a new generation of economical audio signal analyzer from Rhodes & Schwartz. R&S®UPP offers 2 channel /4 channel /8 channel model choices and supports up to 48 channel cascading parallel testing. R&S®UPP comes from the industry's most advanced audio analyzer, R&S®UPV, R&S®UPP outstanding indicators, excellent performance, standard equipped with all commonly used audio test functions and items, whether in the laboratory development or production line testing, R&S®UPP is the audio analysis and testing choice.
Features:
-
Support analog and digital audio output and input interface, 2 channel /4 channel /8 channel three optional models
-
Multiple digital audio interfaces (AES/EBU,S/P DIF, I2S)
-
Up to 80 kHz signal analysis, sampling frequency up to 200 kHz
-
All commonly used audio test signals can be generated (single tone/multitone /DFD/ burst single tone/arbitrary wave...).
-
Standard all audio analysis features (level/signal-to-noise ratio /SINAD/THD/THD+N/FFT/Polarity/ cross...)
-
FFT analysis up to 256 K provides mHz class spectral resolution and supports simultaneous FFT analysis for all channels
-
Built-in commonly used weighted filter, and support users to edit filters
-
With a powerful computer built in, there is no need to exchange a lot of raw data with an external computer, so the test speed is extremely fast
-
Support multiple UPP cascades, up to 48 channels for parallel testing
-
Compatible with UPV standard SCPI control language, standard GPIB/USB/LAN interface
-
Built-in WinXP operating system, using keyboard and mouse operation, support external display, online help function
