Product Description:

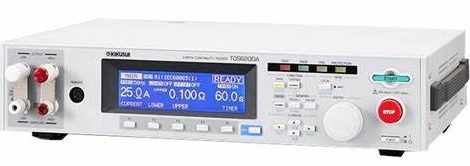

The TOS6200 tester is designed to perform the ground bond tests required for class-I devices by safety standards such as IEC, EN, VDE, BS, UL, JIS, and the Electrical Appliance and Material Safety Low (Japan). Equipped with a new high-efficiency power supply, it is compact and lightweight, about half the size and weight of our conventional products, while achieving a large output of 150 VA.
This tester is also designed for ease of use, featuring a large, easy-to-read display, memory capacity for storage of 100 types of test conditions, and incorporation of test conditions into programs to enable automatic testing. Standard GPIB and RS-232C interfaces allow the user to use PCs or other devices to control test conditions such as test current, resistance value for judgement, and test duration, and enables read-back of measured values and test results. The tester is also provided with test leads as standard and provides high cost effectiveness.
Features:
-
Test current value: 3 to 30 A AC / Resistance value: 0.001 to 1.200 Ohm
-
Offset cancelling function
-
Stores 100 test conditions in memory
-
Incorporates test conditions into program
-
Contact Check function
-
Equipped with standard GPIB and RS-232C interfaces
-
Dimensions: 16.93”(430mm)W X 3.47” (88mm)H X 10.63” (270mm)D
