Product Description:

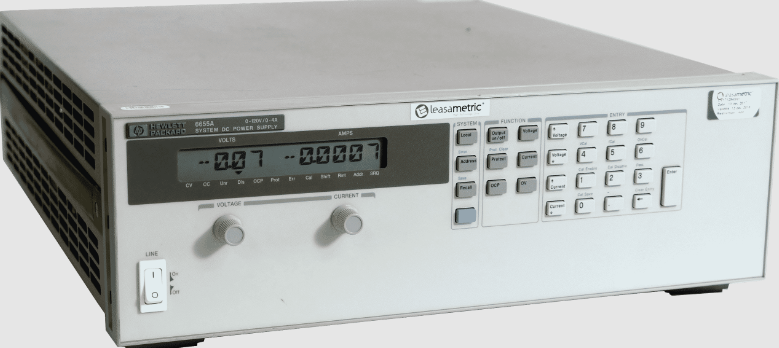

6655A high performance DC power supplies offer speed and accuracy for test optimization. The single output, 500W GPIB 665x series provide fast, low-noise outputs; analog control of output voltage and current; and fan-speed control to minimize acoustic noise.
The Agilent 480W, single output 6655A is a fast and flexible supply or automated testing, and is designed to increase test throughput with fast up-and downprogramming times.
Features:
Output Ratings
-
Output voltage: 0 to 120 V
-
Output current (40°C): 0 to 4 A
-
Maximum current (50°C/55°C): 3.6 A/3.4 A
Programming Accuracy at 25°C ±5°C
-
Voltage 0.06% + 51 mV
-
Current 0.15% + 4 mA
Ripple & Noise from 20 Hz to 20 MHz
-
Voltage rms: 700 µV
-
Peak-to-Peak: 7 mV
-
Current rms: 2 mA
