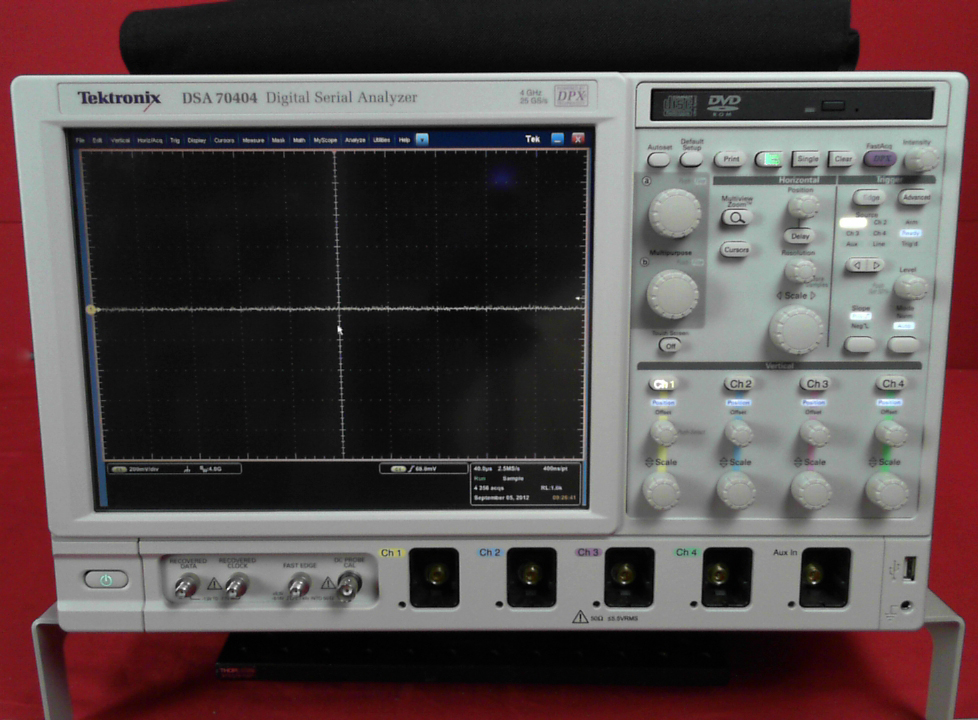

Product Description:
The DPO70000 and the DSA70000 Series are the new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging, and testing sophisticated electronic designs. The specialized DSA70000 Series provides a complete and dedicated solution to address the challenges of high-speed serial designs.
The family features exceptional performance in signal acquisition and analysis, operational simplicity, and unmatched debugging tools to accelerate your day-to-day tasks. The largest screen in the industry and the intuitive user interface provide easy access to the maximum amount of information.
Features:
-
On All Four Channels Simultaneously
-
20, 16, 12.5, 8, 6, and 4 GHz Bandwidth Models
-
Up to 50 GS/s Real-Time Sample Rate
-
Up to 200 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation
-
Fastest Waveform Capture Rate with >300,000 wfms/s Maximum per Channel
-
Digital Serial Analyzer Models with Dedicated Configuration for High-Speed Serial Design and Compliance Testing
-
Enhanced Bandwidth to the Probe Tip Extended to Support Multiple Bandwidth Steps for Advanced Signal Integrity.
-
Pinpoint® Triggering, with over 1400 Combinations to Address Virtually Any Triggering Situation
-
Unique Serial Pattern Triggering up to 3.125 Gbps and 8b/10b Standard Protocol Triggering for Isolation of Pattern-Dependent Effects and NRZ Serial Test Pattern Triggering up to 6.25 Gbps
-
Serial Data Analysis and Compliance for PCI Express, Serial ATA, FB-DIMM, SAS, Fiber Channel, IEEE1394b, RapidIO, XAUI, HDMI, DVI, Ethernet, USB 2.0
-
High-Speed Serial Data Link Analysis for Transmitter Channel Embed or De-embed and Receiver Equalization Emulation
-
Most Popular Jitter, Timing, and Eye-Diagram Analysis Package
-
DDR Memory Bus Analysis
-
12.1-in. Largest XGA Touch-Screen Display in the Industry
-
Event Search and Mark to Facilitate the Comprehension of Event Relationships
-
MyScope® Custom Windows and Right Mouse Click Menus for Exceptional Efficiency
-
OpenChoice® Software with Microsoft Windows XP OS Enables Built-In Networking and Extended Analysis
