Product introduction:

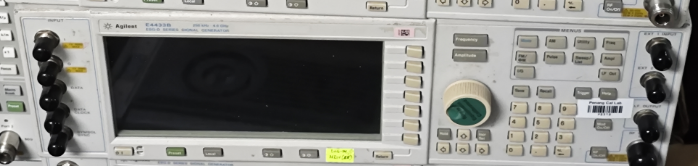

The Agilent E4433B's flexible options provide a test solution that will evaluate the performance of the communication system to meet the requirements of virtually all current and proposed air interface standards. Many test functions can be customized to meet the needs of proprietary and other non-standard wireless protocols. You can configure your instrument to handle a wide variety of tests -- from changing digital signals or almost every aspect of the signal operating environment to creating experimental signals.
Features:
-
250 kHz to 4 GHz frequency range
-
RF modulation bandwidth up to 35 MHz
-
Optional double arbitrary waveform generator
-
And/or real-time I/Q baseband generator
-
40 MHz sampling rate and 14-bit I/Q resolution
-
1 Msample (4 MB) memory Used for waveform playback
-
1 Msample (4 MB) memory Used for waveform storage
-
Custom digital modulation (>15 FSK, MSK, PSK, QAM variants),AM, FM, Phase modulation, Pulse modulation, step/table scanning (frequency and power)
-
GPIB and RS-232 connectivity
